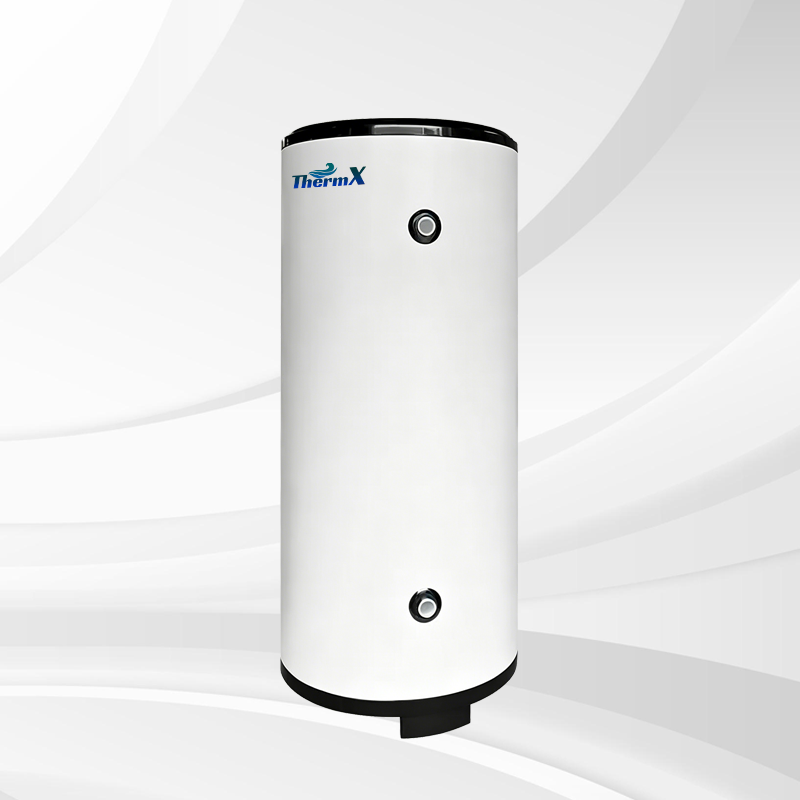

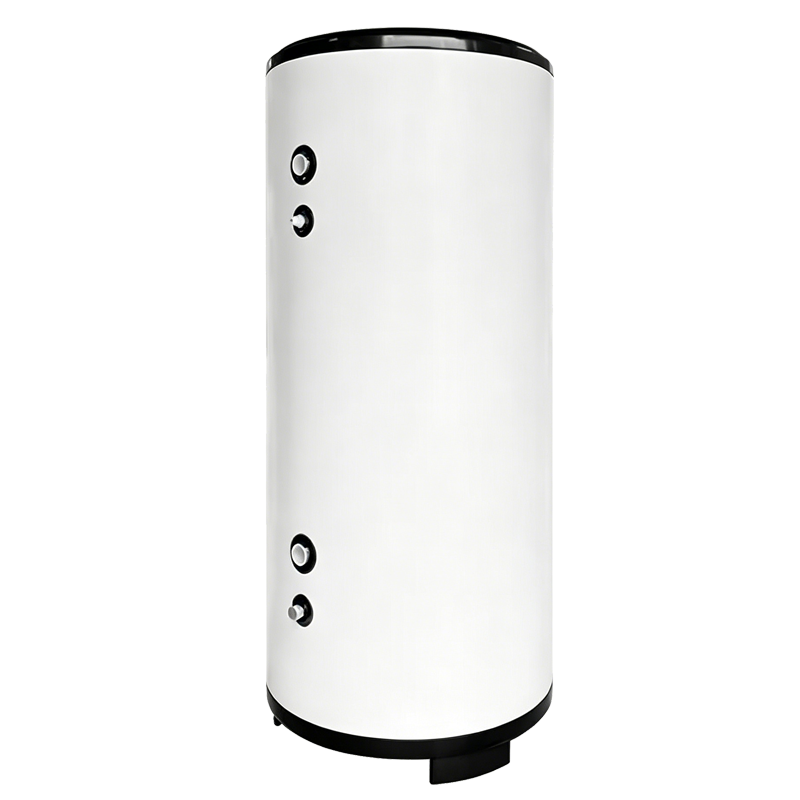

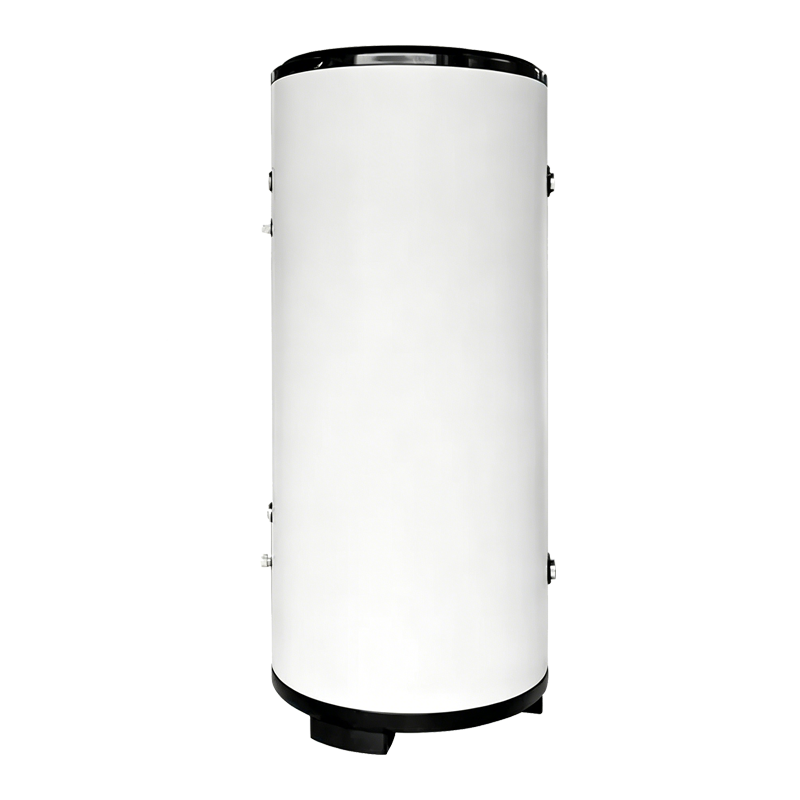

Duplex Stainless Steel Buffer Cylinders_Buffer Cylinder_Cylinder_Products

Capacity/Volume	50L	100L	200L
Diameter of inner tank	Φ370mm	Φ370mm	Φ420mm
Diameter of outer case	Φ470mm	Φ470mm	Φ520mm
Height	675mm	992mm	1568mm
Material of inner tank	DUPLEX2101	DUPLEX2101	DUPLEX2101
Thickness of inner tank	1.0mm	1.0mm	1.0mm
Inner tank cover	1.2mm	1.2mm	1.2mm
Material of outer case	Galvanized steel with painting	Galvanized steel with painting	Galvanized steel with painting
Electric heater	G1''	G1''	G1''
Electrical heater power	3Kw	3Kw	3Kw
Thermostat	Automatic reset convex jump protector	Automatic reset convex jump protector	Automatic reset convex jump protector
Temp. sensor pipe	ID 8mm	ID 8mm	ID 8mm
Cold water inlet	G1/2''	G1/2''	G1/2''
Exhaust	G1/2''	G1/2''	G1/2''
Water drain	G3/4''	G3/4''	G3/4''
Circulating1 inlet	G1''	G1''	G1''
Circulating1 outlet	G1''	G1''	G1''
Circulating2 inlet	G1''	G1''	G1''
Circulating2 outlet	G1''	G1''	G1''
Working pressure	6bar	6bar	6bar
Testing pressure	10bar	10bar	10bar
Thermal insulation material	Polyurethane	Polyurethane	Polyurethane
Insulation thickness	50mm	50mm	50mm
Packing size	540540785mm	5405401102mm	5905901678mm
weigh	14kg	22kg	38kg
