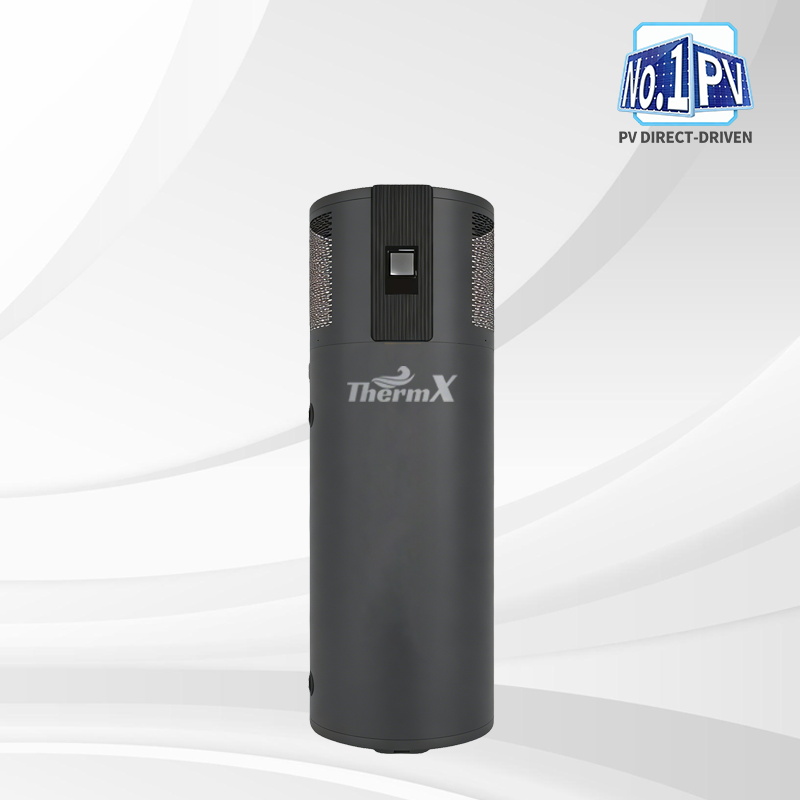

R290 Side-Discharge All-in-One Heat Pump

Product Features

  • • Side Discharge Design for Enhanced Airflow & Heat Exchange
  • • ​ Photovoltaic direct drive
  • • Full DC Inverter Technology
  • • Noise Level as Low as 43dB(A)
  • • Noise Level as Low as 43dB(A)
  • • Noise Level as Low as 43dB(A)
  • • Eco-friendly R290 Refrigerant
  • • Enamel Inner Tank
  • • High STC Value of 36,Certified with SAA, Watermark, Standard Mark
  • • Stable Operation under Low Temperature at -7°C

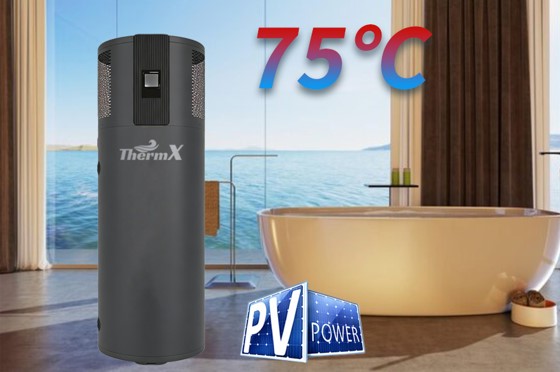

  • • 75℃ High-Temperature Water Outlet
  • • Remote Control Management: WiFi & APP & IOT platform
caitlin@thermx.cn
Feature

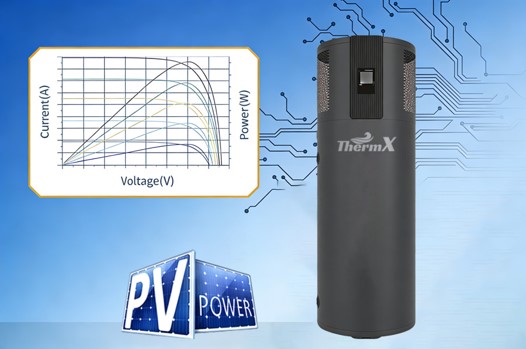

MPPT function

Featuring Maximum Power Point Tracking (MPPT) technology, this system efficiently optimizes the use of solar power by continuously adjusting to the optimal power point. This ensures maximum energy harvest from solar panels, enhancing the overall performance and efficiency of the heating solution.

Feature

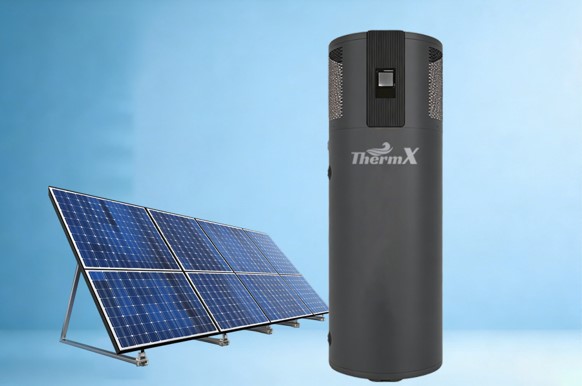

PV Direct Drive

Employing photovoltaic direct drive technology, this system no longer requires converting solar power from DC to AC. This innovation enhances efficiency and reduces energy loss, providing a seamless and sustainable energy solution for your heating needs.

Feature

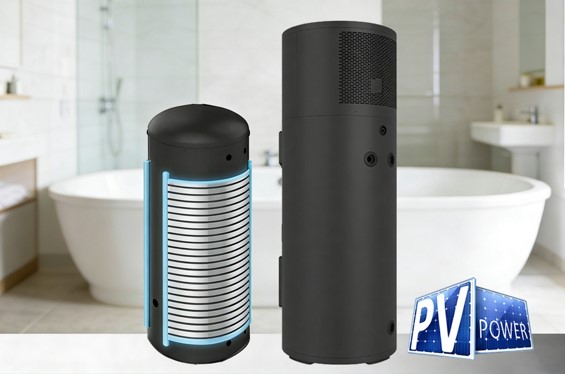

Microchannel Heat Coil

Featuring advanced microchannel technology, this heat pump water heater delivers superior heat transfer and efficiency compared to traditional copper-aluminum tube designs. The innovative construction enhances overall performance while achieving significant energy savings—offering a reliable, eco-friendly solution for your hot water needs.

Feature

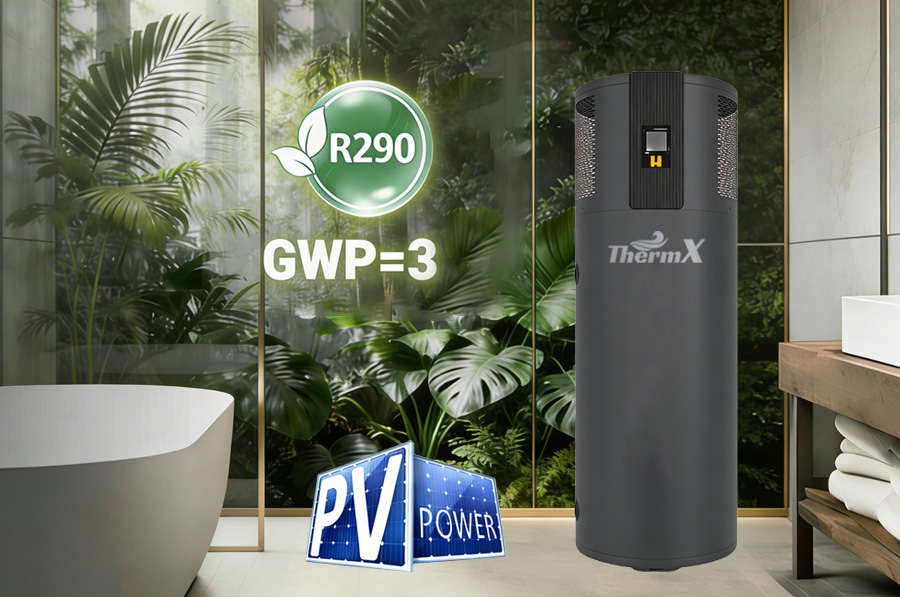

Eco-Friendly

Powered by R290 refrigerant with an ultra-low Global Warming Potential (GWP) of just 3, this heat pump water heater delivers greener, more efficient water heating. Enjoy reliable hot water while dramatically reducing your environmental footprint—the ideal choice for eco-conscious households.

Feature

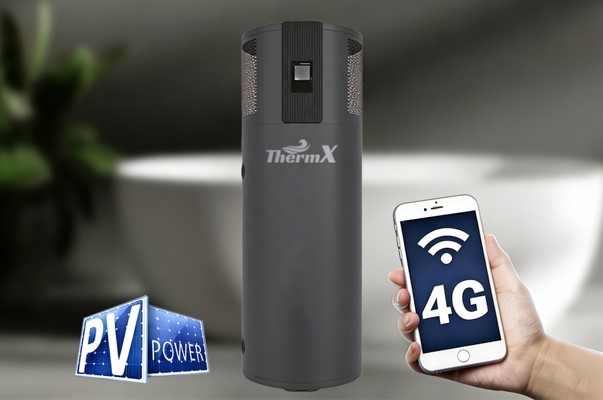

Smart Control

Built-in Wi-Fi and 4G modules enable seamless remote intelligent control. Easily optimize temperature and performance from anywhere, enhancing user convenience and delivering a cutting-edge hot water solution for modern homes.

Feature

Safe Operation

Multiple safety features include high/low pressure, overcurrent, phase-loss, anti-freeze, and delayed start protections, ensuring safe and stable operation under all conditions.

ModelTHX-G210SDTHX-G270SDTHX-G320SD
Water Tank   Volume(L)210L270L320L
PV Max. Input   Current(A)18
Optimal PV   Input Voltage Range(V)100~190
PV Module Qty.   (530W/50.2V)3
Power Supply220~240V/1ph/50~60Hz
Rated Heating   Capacity(kW)333
Rated Power   Input(kW)0.5770.5770.577
COP5.25.25.2
Max. Power   Input(kW)3.13.13.1
Max. Current   Input(A)161616
Water Tank   Volume(L)210270320
RefrigerantR290
Heat ExchangerMicrochannel
Defrosting   MethodBy 4-way Valve
Water Proof   LevelIPX4
Max. Water   Tank Pressure(MPa)0.85
Outer   Casing/ShapeMetel
Expansion   ValveElectronic
Air   Flow(m³/h）1000
Air DischargeHorizontal
Air Duct   DiameterNon-ducted
Electric   Heater (kW)1.6
Rated   Current(A)7.1
Default Water   Temp.(℃)60
Max. Water   Temp.(℃)75
Operating   Ambient Temp.(℃)-7~46
Noise(dB(A))43
Water Pipe   Diameter(inch)G3/4
Net Weight(kg)116130146
Gross   Weight(kg)126150166
Unit   Dimensions(L*W*H)(mm)650*650*1650650*650*1870650*650*2090
Packed   Dimensions(L*W*H)(mm)720*720*1785720*720*2005720*720*2225
Heating Capacity at Air 20℃/15℃, Water Temp. from 15℃~55℃
