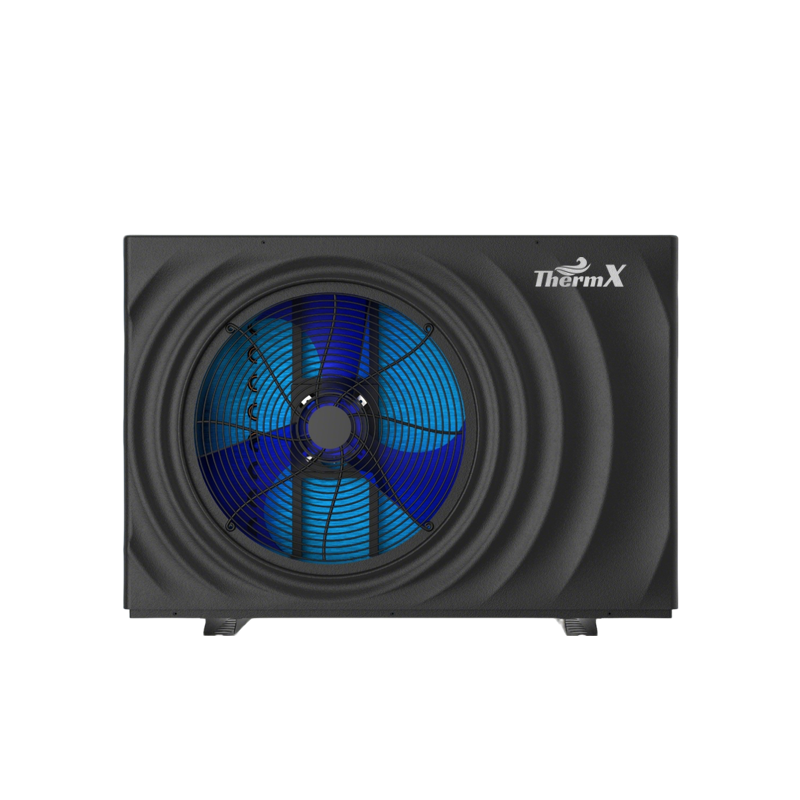

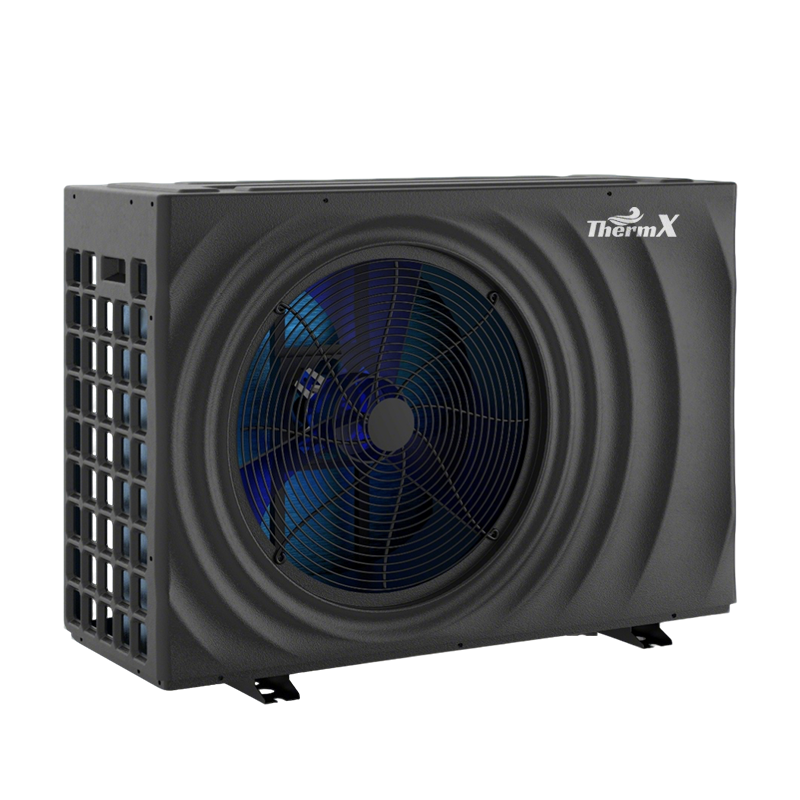

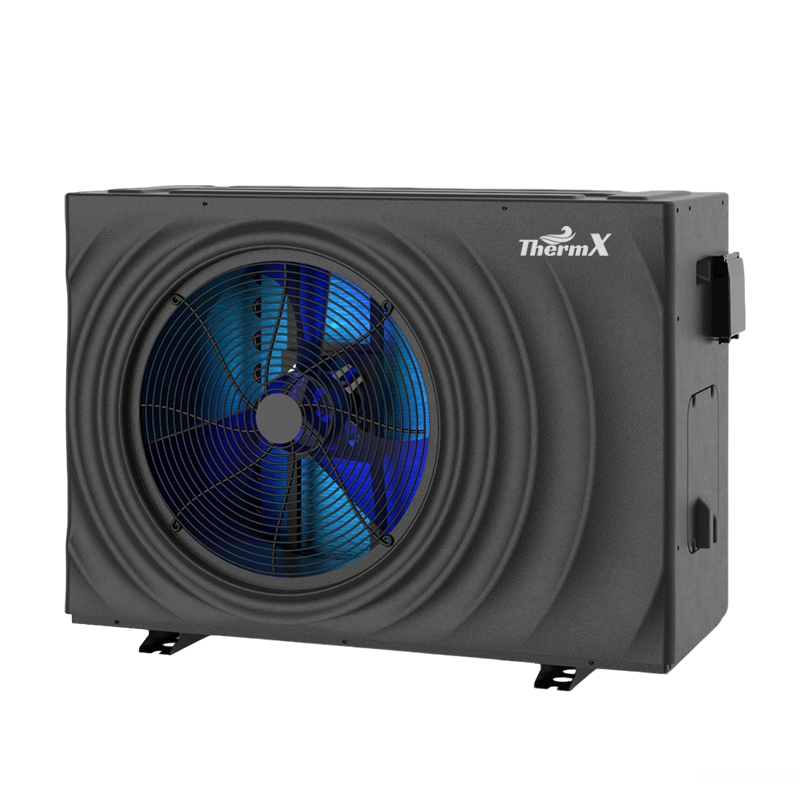

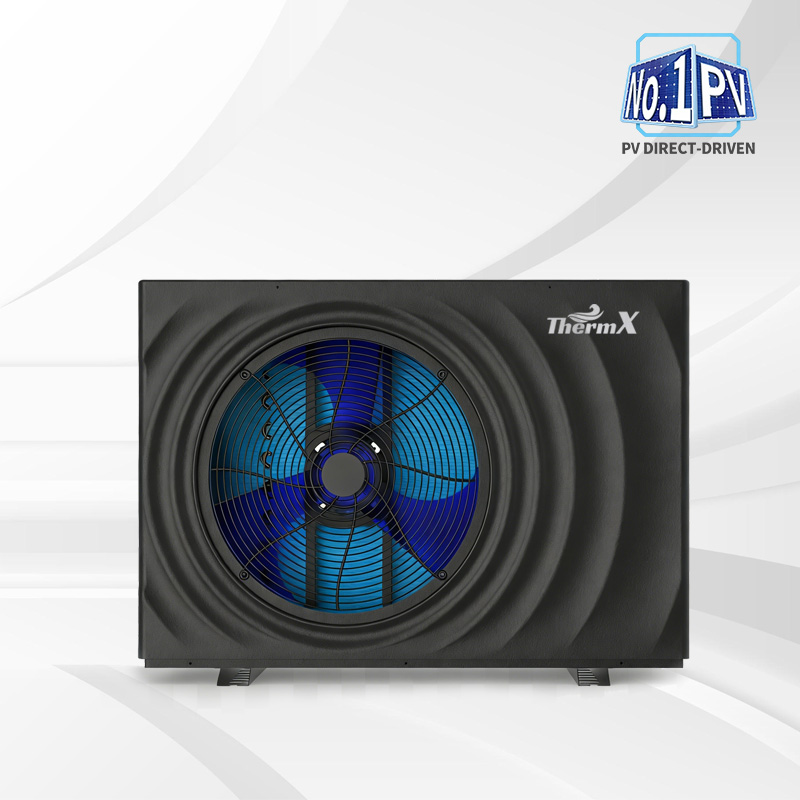

AquaFlow Series R32 Swimming Pool Heat Pump

Product Features

  • • Eco-friendly R32 Refrigerant
  • • PV Direct-Drive function
  • • Full DC Inverter Technology
  • • COP up to 15
  • • Stable Operation under Low Temperature at -15°C
  • • Noise Level as low as 39dB(A)
  • • Remote Control Management: WiFi & APP & IOT platform
caitlin@thermx.cn
Feature

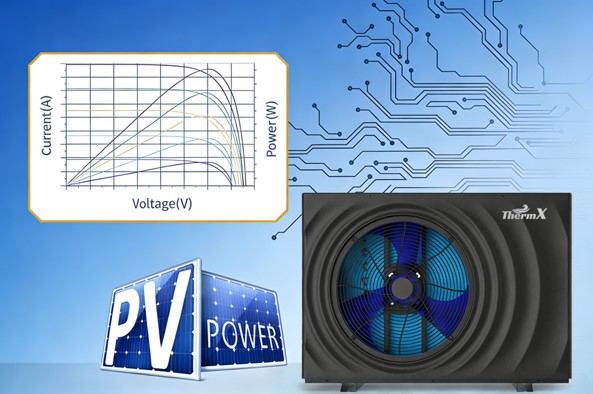

MPPT function

Featuring Maximum Power Point Tracking (MPPT) technology, this system continuously adjusts to the optimal power point, efficiently maximizing the use of solar energy. This ensures the highest possible energy harvest from the solar panels, enhancing the overall performance and efficiency of the heating solution.

Feature

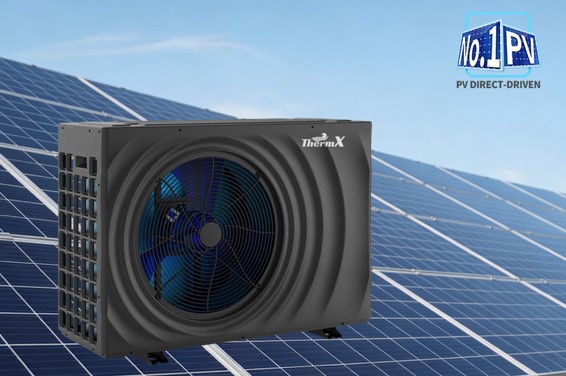

PV Direct Drive

With photovoltaic direct drive technology, the system eliminates the need for DC-to-AC conversion—cutting energy loss and boosting efficiency. The result is a seamless, sustainable power solution for your heating needs.

Feature

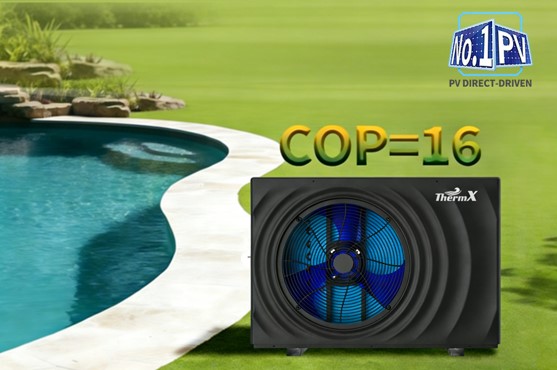

Ultra COP

Achieving an exceptional coefficient of performance (COP) of up to 16, this system sets a new benchmark for energy efficiency. Engineered to maximize heat output while minimizing energy consumption, it delivers powerful performance with reduced operating costs. Ideal for pool heating and space warming, it offers a sustainable, eco-friendly solution that ensures long-term savings and a superior user experience.

Feature

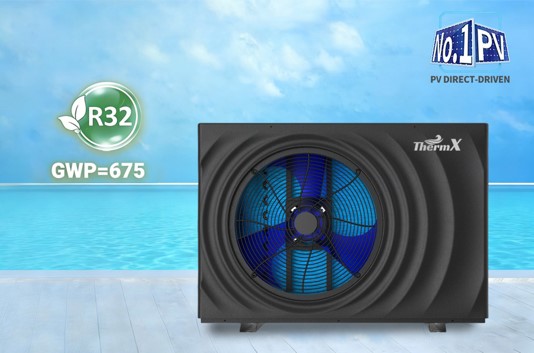

Eco-Friendly

Powered by environmentally friendly R32 refrigerant with a low Global Warming Potential (GWP) of just 675, this pool heat pump delivers enhanced heating efficiency while minimizing environmental impact. Designed to reduce ozone depletion and energy consumption, it offers a sustainable, cost-effective solution—so you can enjoy a warm, comfortable pool while caring for the planet.

Feature

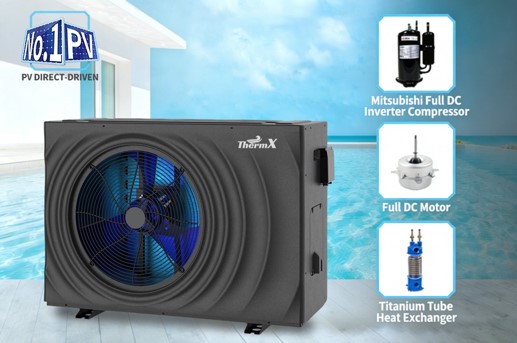

Advanced Technology

Equipped with Mitsubishi full DC inveter compressors, high-efficiency DC motors, and premium titanium tube heat exchangers, this pool heat pump delivers exceptional performance, stability, and long-lasting durability. Engineered for precision and reliability, it maintains your pool at the ideal temperature while maximizing energy efficiency—offering a truly superior heating experience.

Feature

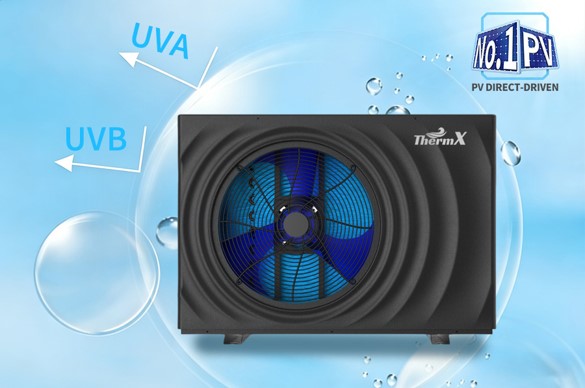

Durable Protection

Constructed with high-quality ABS+ASA plastic, this pool heat pump offers exceptional durability and outstanding resistance to UV exposure. Its rugged design ensures long-lasting performance and reliable protection against environmental elements, making it the perfect choice for maintaining optimal pool temperatures all year round.

Model TX-AquaFlow-7TX-AquaFlow-9TX-AquaFlow-12TX-AquaFlow-15TX-AquaFlow-18TX-AquaFlow-25TX-AquaFlow-35TX-AquaFlow-25/3TX-AquaFlow-35/3
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃   out
Heating   Capacity(kW)1.70~7.602.30~9.503.00~12.003.80~15.004.80~18.006.80~25.008.80~35.006.80~25.008.80~35.00
AC Power   Supply220~240V/1ph/50Hz380~415V/3ph/50Hz
PV Max. Input   Current(A)183018
Optimal PV   Input Voltage(V)100~190190~370180~350360~500
PV Module Qty.   (630W/50.2V)(pcs)334562 strings * 4   modules 2 strings * 6 modules1011
Power   Input(kW)0.11~1.120.15~1.400.18~1.730.23~2.140.30~2.640.43~3.570.54~5.130.43~3.570.54~5.13
COP6.81~16.206.82~16.306.90~16.307.00~16.406.81~16.207.00~16.306.82~16.407.00~16.306.82~16.40
Average COP at   50% Capacity11.81211.811.911.811.611.811.611.8
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃   out
Heating   Capacity1.40~6.101.90~7.602.30~9.803.00~12.503.80~16.505.50~22.006.40~25.505.50~22.006.40~25.50
Power   Input(kW)0.19~1.240.25~1.550.29~1.960.38~2.760.49~3.370.69~4.400.67~5.200.69~4.400.67~5.20
COP4.90~7.504.90~7.605.00~7.804.90~8.004.90~7.805.00~8.004.90~8.105.0~8.04.90~8.10
Average COP at   50% Capacity6.876.96.96.86.96.86.96.8
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling   Capacity(kW)1.00~4.201.30~5.301.70~7.202.10~9.402.70~11.603.80~14.904.90~19.303.80~14.904.90~19.30
Power   Input(kW)0.15~1.110.19~1.400.25~1.890.31~2.470.40~3.050.77~3.920.73~5.080.77~3.920.99~5.08
EER3.50~6.203.40~6.003.60~6.503.60~6.503.60~6.503.80~6.703.50~6.403.80~6.703.50~6.40
General Data
Max Power   Input(kW)1.551.782.63.153.755.177.256.437.25
Max Current(A)7.38.311.814.517.524.533.57.912.8
Water Flow   Volume(m³/h)2.53.54.55.56.5912912
RefrigerantR32
Heat   ExchangerTitanium
Air Flow   DirectionHorizontal
Kind of   DifrostBy 4-way Valve
CompressorMitsubishi
Casing   MaterialABS
Water Proof   LevelIPX4
Working Temp.   Rante(℃)-15~43
Water Pipe   Connection SizeDN50
Noise Level at   1m(dB(A))39~4940~5242~5343~5545~5647~5849~5947~5849~59
Noise Level at   10m(dB(A))20~2920~3222~3323~3525~3627~3829~3927~3829~39
Net Weight(kg)424343465088988898
Gross   Weight(kg)53545457629911099110
Net   Dimensions(mm)880*340*590920*380*6501080*420*740
Packed   Dimensions(mm)930*400*640990*400*7601150*460*870
Note: The data above is for reference only. Please refer to   the nameplate on the unit if for more specific data.
