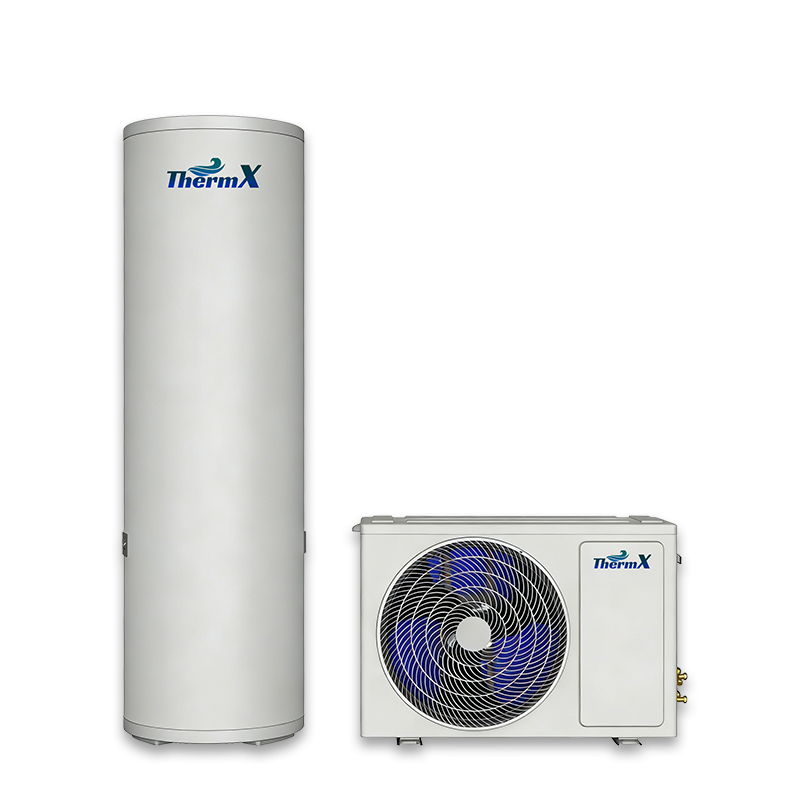

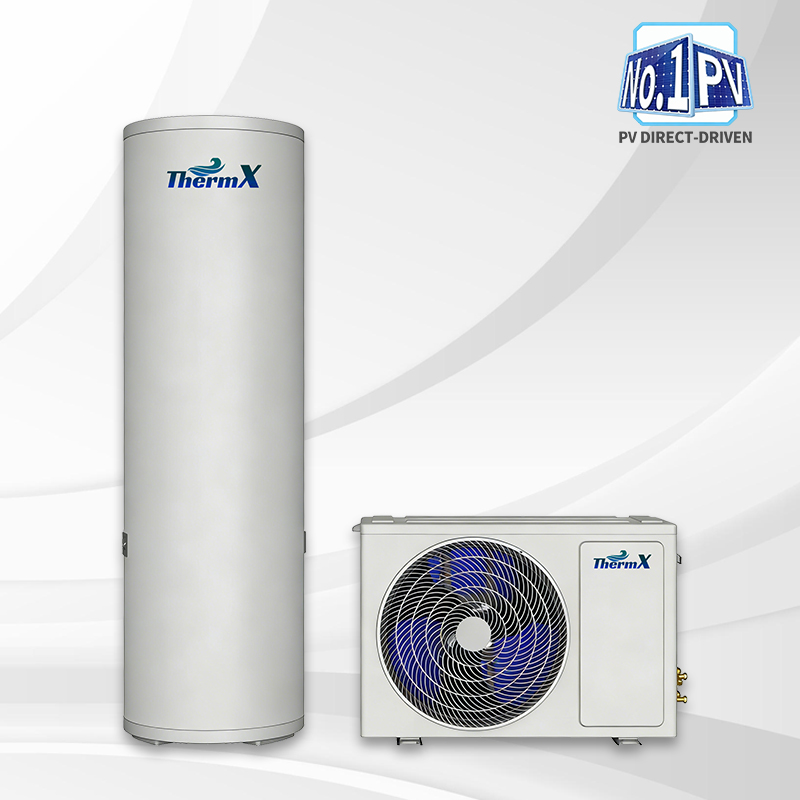

R134A Floria cycle split Heat Pump Water Heater
Product Features
- • Photovoltaic direct drive
- • MPPT function
- • 24 hours stable hot water supply，75C hot water
- • Built-in Wi-Fi module
- • Micro-Channel Heat Coil
- • High Quality Enamel Water Tank
- • Water and electrical separation design,safe and reliable
- • Fluorine cycle, environment-friendly refrigerant R134a
- • Remote Control Management: WiFi & APP & IOT platform
| Model | Thermx C200-4.5 | Thermx C300-5 | Thermx C500-5 |
| AC Power Supply | 208~240V/1ph/50~60Hz |
| PC Max. Input Current(A) | 18 |
| Optimal PV Input Voltage Range(V) | 100~190 |
| PV Module Qty. (630W/50.2V)(pcs) | 3 |
| Heating Capacity(W) | 4500 | 5000 |
| Hot Water Yield(L/h) | 100 | 110 |
| Power Input(W) | 1060 | 1190 |
| Rated Current(A) | 5.2 | 5.6 |
| Max. Power Input(W) | 1500 | 1500 |
| Max. Current Input(A) | 8.5 | 9.3 |
| Starting Current(A) | 4 |
| COP | 4.25 | 4.2 |
| Heating Type | Fluorine Cycle |
| Refrigerant | R134a |
| IP Class | IPX4 |
| Electricall Shockproof | Ⅰ |
| Max. Allowable Pressure(MPa) | 3.2 |
| Max. Outlet Water Temp.(℃) | 75 |
| Operating Ambient Temp.(℃) | -7~46 |
| Noise(dB(A)) | ≤52 |
| Water Piping Connections(inch) | G3/4 |
| Main Unit Net Weight/Gross Weight(kg) | 33/40 |
| Main Unit Size(mm) | 790*312*565 |
| Packed Size(mm) | 925*390*598 |
| Remark: Working condition, Inlet water temp. 15℃, Outlet water temp. 55℃, Dry bulb temp. 20℃, Wet bulb temp. 15℃. |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. |
