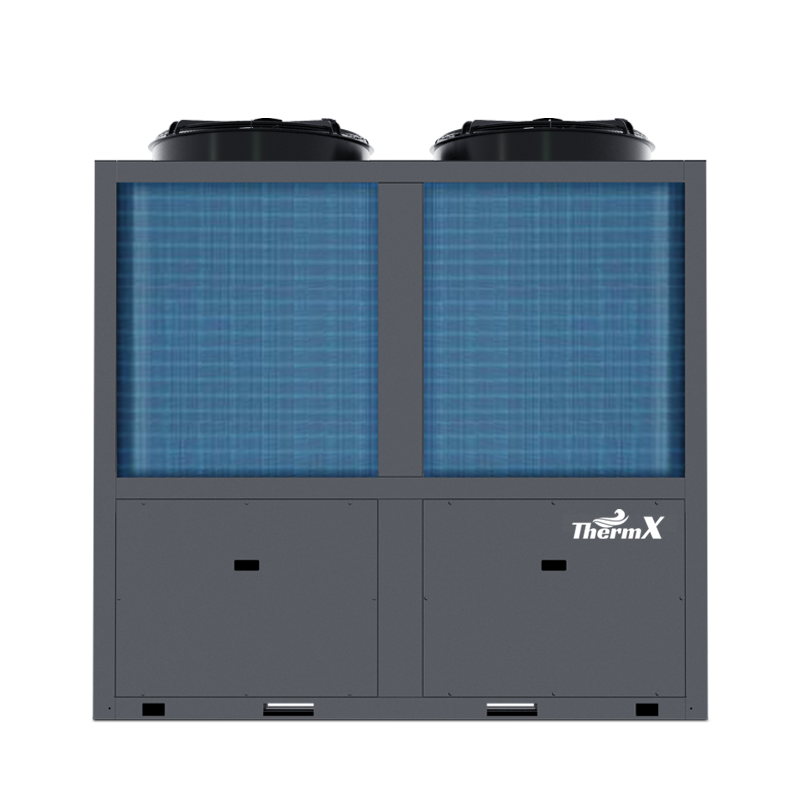

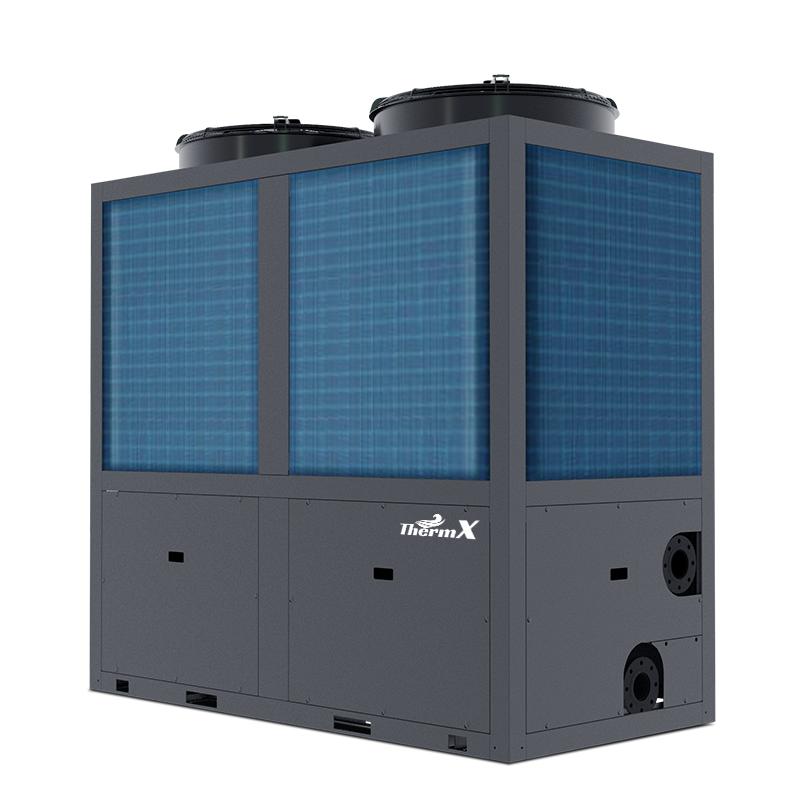

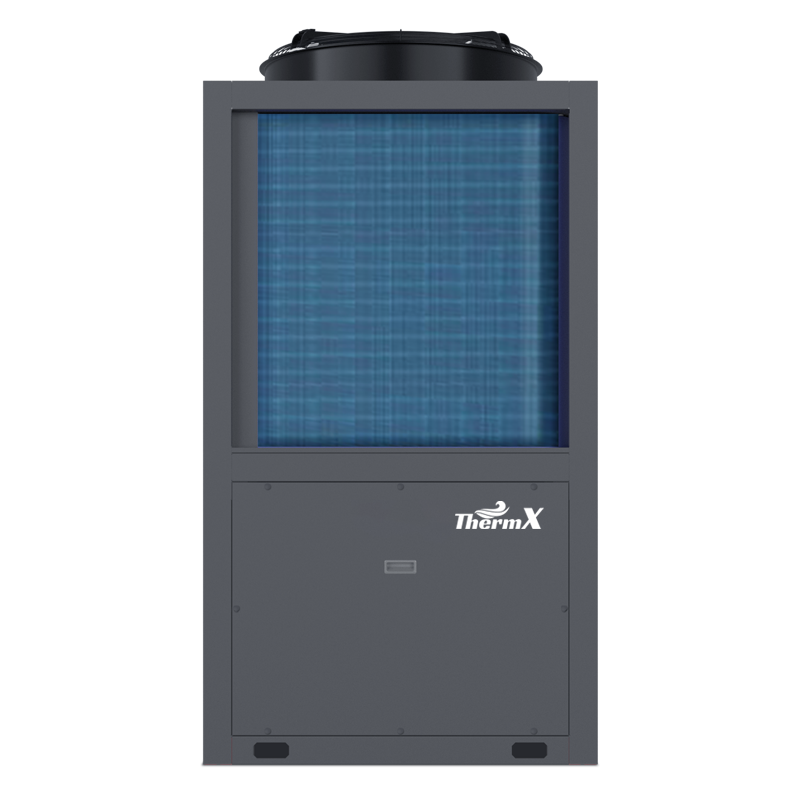

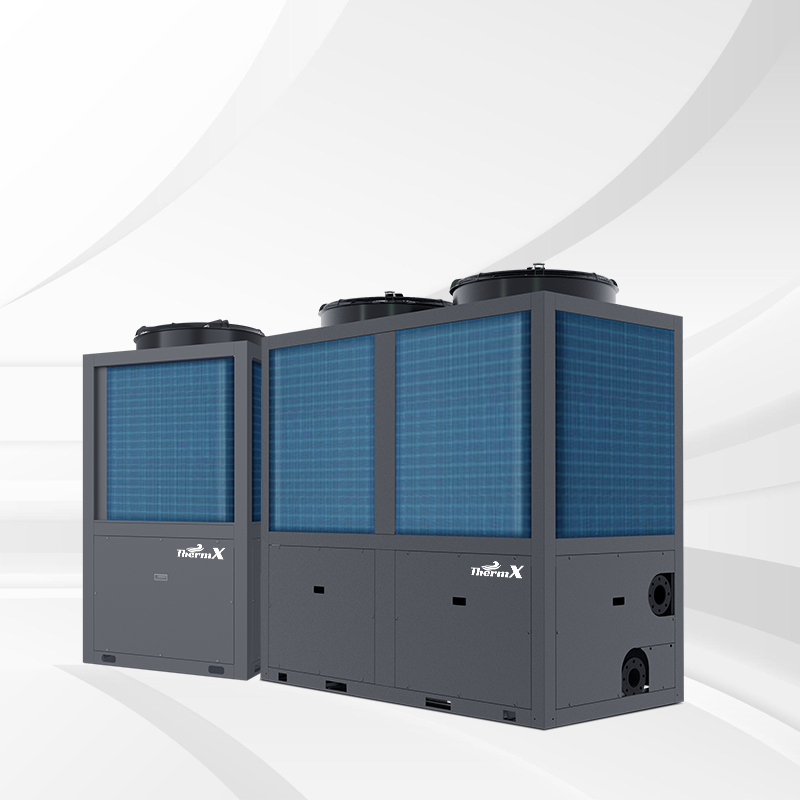

R32 Commercial Air-to-Water Heat Pumps

Product Features

  • • Eco-friendly R32 Refrigerant
  • • Full DC Inverter Technology
  • • A+++ at 35℃ and A++ at 55℃
  • • EVI Technology for Stable Heating Down to -35℃
  • • Up to 60℃ Water Outlet Temperature
  • • Noise Level as Low as 55dB(A)
  • • Remote Control Management: WiFi & APP & IOT platform
caitlin@thermx.cn
Feature

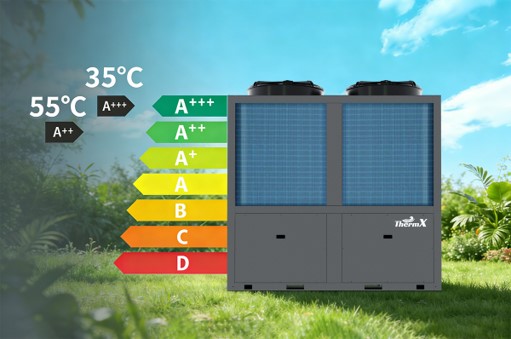

Ultra-Efficient Performance

This commercial heat pump achieves A+++ efficiency at 35°C and A++ at 55°C, maximizing energy savings while minimizing electricity consumption. Designed for consistent, high-performance heating, it’s the ideal solution for businesses seeking both cost-effective and environmentally friendly operation.

Feature

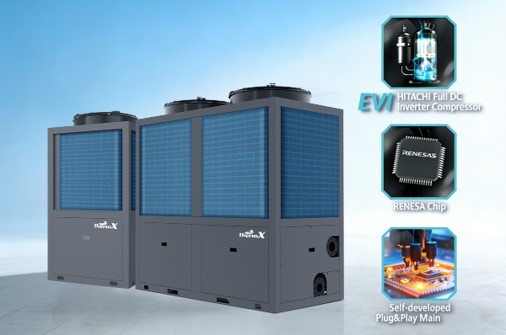

Advanced Technology

Equipped with a HITACHI full DC inverter compressor and powered by a RENESAS control chip, this commercial heat pump delivers precise, efficient, and reliable performance. The self-developed plug-and-play mainboard simplifies installation and maintenance, enhancing user convenience. Designed to operate reliably in extreme conditions down to -35°C, it provides a robust, high-performance heating solution for commercial applications.

Feature

Eco-Friendly

Using R32 refrigerant with a low GWP of 675, this commercial heat pump delivers high-efficiency heating while minimizing environmental impact. It’s an ideal solution for businesses seeking sustainable and eco-conscious performance.

Feature

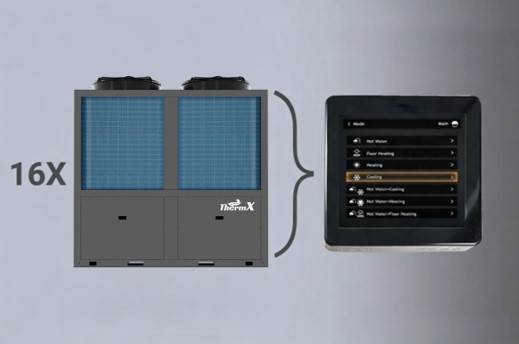

Scalable Integration

Supports cascading of up to 16 units, enabling flexible and efficient large-scale heating solutions. Designed for seamless integration, it delivers reliable performance and consistent energy efficiency across commercial applications.

Feature

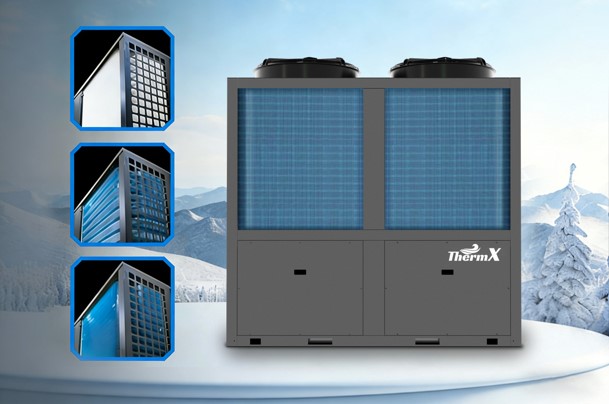

Intelligent Defrosting

An advanced intelligent defrosting system prevents frost buildup, ensuring stable and efficient heating even in harsh cold climates. It delivers reliable, uninterrupted performance for year-round comfort in commercial applications.

Feature

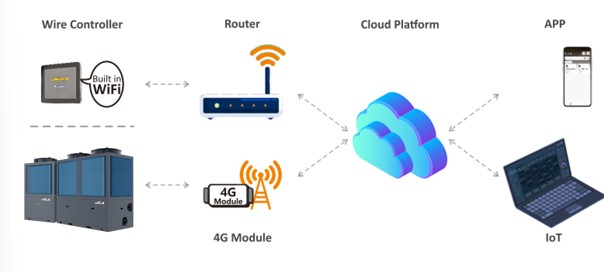

Smart Control & IoT Connectivity

Featuring a 7-inch display with WiFi and Tuya App compatibility, the unit includes a high-accuracy temperature sensor and full IoT functionality. Standard app control and cloud connectivity allow users to monitor performance, adjust settings remotely, receive alerts, and track energy usage. Up to 16 units can be cascaded for seamless multi-system management, enhancing convenience and long-term efficiency.

Feature

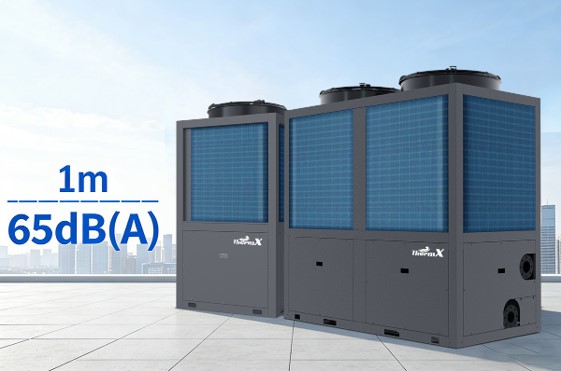

Quiet Operation

Engineered with soundproof insulation and optimized fan blades, this commercial heat pump operates at just 65 dB(A) at 1 meter. It delivers efficient heating with minimal noise, providing a comfortable and serene environment for commercial spaces.


ThermX-R50ThermX-R100ThermX-R210ThermX-R400
Power Supply380~415V/3ph/50Hz
Nominal Heating(Max.)(A7/6℃, W30/35℃)
Heating   Capacity(kW)46.0(13.9~52.8)92.0(28.5~107.8)176.0(49.7~213.0)335.0(52.3~402.5)
Power   Input(kW)11.1(3.0~15.2)22.2(5.9~30.3)42.33(11.1~60.0)98.8(16.3~137.8)
COP4.14(3.50~4.75)4.15(3.52~4.80)4.16(3.55~4.82)3.39(2.92~3.91)
Nominal Heating(Max.)(A7/6℃, W47/55℃)
Heating   Capacity(kW)43.3(13.5~49.5)86.5(27.9~102.3)172.0(48.6~202.0)315.0 (49.0~378.0)
Power   Input(kW)16.5(4.3~19.5)32.8(9.0~40.1)64.89(17.1~79.2)145.0 (24.0~202.0)
COP2.63(2.53~3.12)2.64(2.53~3.12)2.65(2.55~3.12)2.45 (2.10~2.80)
Nominal Heating(Max.)(A-12/-14℃, W50/55℃)
Heating   Capacity(kW)34.0(10.3~35.3)68.0(21.3~72.1)136.8(36.3~141.0)258.0(39.9~276.2)
Power   Input(kW)19.6(4.9~20.7)38.8(9.9~42.4)79.4(18.1~82.0)106.6(17.3~131.5)
COP1.73(1.70~2.20)1.75(1.70~2.20)1.72(1.65~2.15)2.42(2.05~2.90)
Nominal Cooling(Max.)(A35/24℃, W12/7℃)
Cooling   Capacity(kW)28.0(12.2~30.6)56.0(25.2~62.5)106.0(39.4~135.2)215.0(31.9~233.7)
Power   Input(kW)12.1(5.1~17.2)27.0(10.7~31.1)46.1(18.7~73.1)97.7(15.1~116.9)
Max. Power   Input(kW)224382155
Max.   Current(A)43.585160270
Compressor   Quantity124
Expansion   ValveEEV
Air Flow   DirectionVertical
IP ClassIPX4
Water Flow   Volume(m³/h)8163054
Water Pressure   Drop(kPa)707376
Working Temp.   Range(℃)-35~46
Max. Water   Outlet Temperature(℃)60
Noise(dB(A))≤65≤68≤76≤76
Water   ConnectionG1-1/2(Flange)DN65(Flange)DN80(Flange)DN100
Net Weight(kg)45078012502600
Dimensions(L*W*H)(mm)1100*1100*21502000*1110*22502400*1160*24502400*2200*2500
