Product

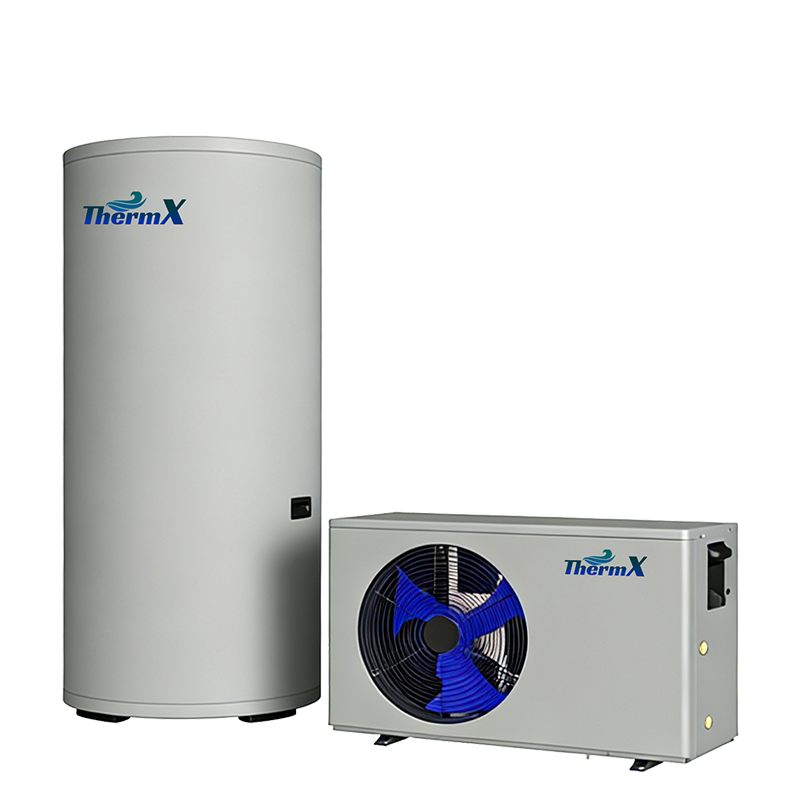

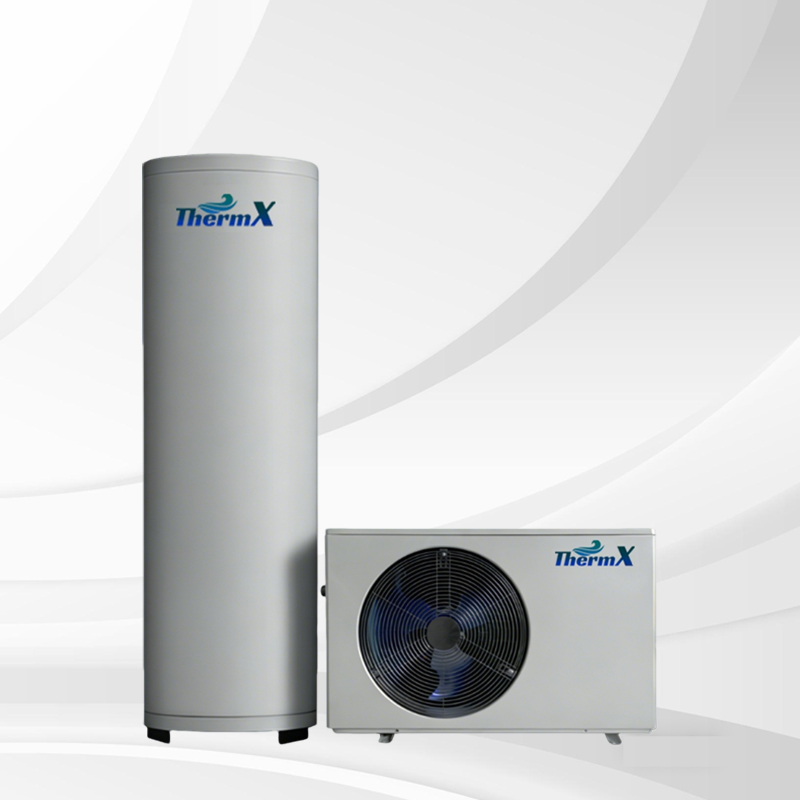

Residential Water-Cycle Hot Water Heat Pumps (R410A)

Product Features

  • • Split Type, Flexible Tank Installation
  • • ON-OFF
  • • Stable Operation under Low Temperature at -15°C
  • • Noise Level as low as 54dB(A)
  • • 55℃ Water Outlet
  • • Water Cycle Design
  • • Enlarged Evaporator for Higher Heat Exchange Efficiency
  • • Remote Control Management: WiFi & APP & IOT platform
  • • Tank Available: 200L, 300L, 500L
caitlin@thermx.cn
Feature

Efficient & Durable Heating

Our On-Off water heater features hydrophilic aluminum fins for superior heat transfer, enhanced energy efficiency, and excellent corrosion resistance. The result is fast, reliable performance with minimal maintenance requirements.

Feature

24-Hours Hot Water

Enjoy uninterrupted hot water around the clock, powered by a high-efficiency compressor. This advanced technology delivers consistent performance, energy savings, and reliable operation—providing a steady hot water supply that is both eco-friendly and cost-effective for your daily needs.

Feature

Water-Electricity Separation

This heat pump features a fully separated water and electricity design, ensuring safer, more reliable operation. Enjoy peace of mind with enhanced protection and efficient performance in every use.

ModelTHERMX-W3.5ATHERMX-W5.5ATHERMX-W10ATHERMX-W14A
Power Supply220~240V/1ph/50Hz
Heating Capacity(W)375053001060014000
Rated Hot Water   Production(L/h)80114228300
Rated Power Input(W)882123225243325
Rated Current   Input(A)4.055.6611.5914.6
COP (20/15℃, 15℃ in, 25℃   out)4.254.34.24.21
Electric   HeaterRated Power Input(W)20004000
Rated Current Input(A)9.089.118.2518.15
Max. Power Input(W)1450192044004650
Max. Current   Input(A)7.2210.524.0526.85
RefrigerantR410A
Operation   Pressure(Low Side)(MPa)0.8
Operation   Pressure(High Side)(MPa)4.2
Max. Allowable   Pressure(MPa)4.4
Water Tank Volume(L)200~300300~500500
Rated Working   Pressure of Tank(MPa)0.8
CompressorRotary
CondenserShell and tube heat exchanger
Fan MotorAxial flow
Electronic Expansion   ValveDunAn 1.3CEunAn 1.65CDunAn 2.0CDunAn 2.5C
Electrical   ShockproofⅠ
IP ClassIPX4
Max. Water Temp. (℃)55
Operating Ambient   Temp.(℃)-15~46
Noise(dB(A))5455
Water Piping   Connections(inch)G1/2G3/4
Net Weight/Gross   Weight(kg)50/5557/6265/9070/95
Unit   Dimensioin(L*D*H)(mm)947*370*5651078*390*705
Packed   Dimensions(L*D*H)(mm)1002*414*5911103*436*850
Heating Capacity at Air 20℃/15℃, Water 15℃~55℃
Note: The data above is for reference only. Please refer to   the nameplate on the unit if for more specific data.
