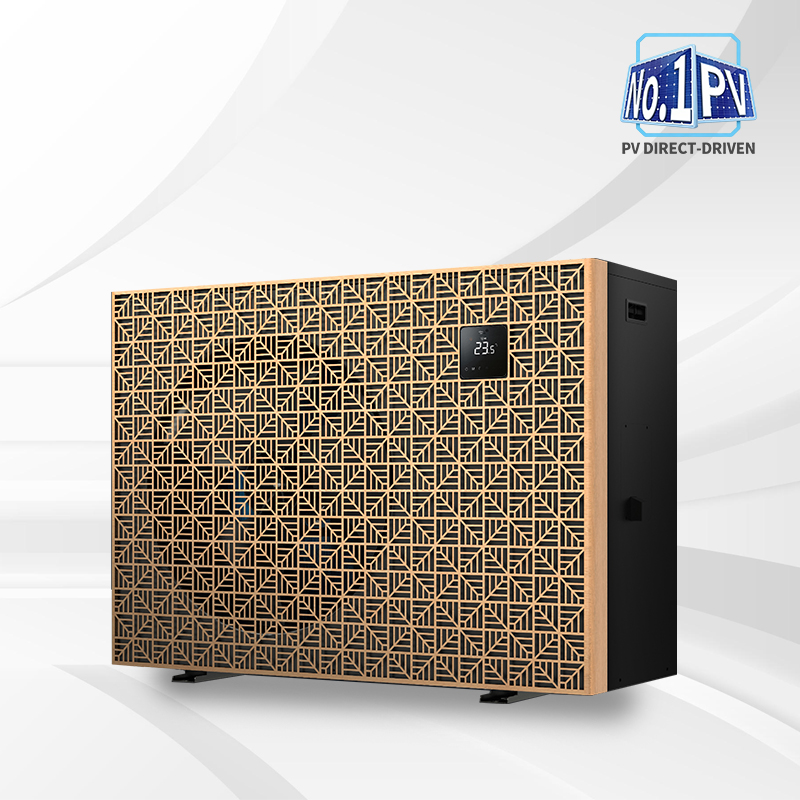

AquaEco Series R290 Swimming Pool Heat Pump
Product Features
- • Eco-friendly R290 Refrigerant
- • PV Direct-Drive function
- • Full DC Inverter Technology
- • COP up to 23
- • Stable Operation under Low Temperature at -20°C
- • Noise Level as low as 37dB(A)
- • Remote Control Management: WiFi & APP & IOT platform
MPPT function
Featuring Maximum Power Point Tracking (MPPT) technology, this system continuously adjusts to the optimal power point, efficiently maximizing the use of solar energy. This ensures the highest possible energy harvest from the solar panels, enhancing the overall performance and efficiency of the heating solution.
PV Direct Drive
With photovoltaic direct drive technology, the system eliminates the need for DC-to-AC conversion—cutting energy loss and boosting efficiency. The result is a seamless, sustainable power solution for your heating needs.
Ultra COP
With a COP up to 23, the system achieves exceptional efficiency, cutting energy costs while heating faster and more effectively.
Eco-Friendly
Using R290 natural refrigerant, this unit delivers powerful heating with zero ozone depletion and ultra-low carbon emissions — fully compliant with global eco-standards.
Silent Mode
Advanced airflow design and inverter technology reduce noise levels to as low as 36 dB, ensuring a მშვიდ and relaxing swimming experience.
Smart Control
With WiFi and IoT connectivity, enjoy remote monitoring, precise temperature control, and convenient OTA updates—anytime, anywhere.
| Model | TX-AquaEco-10 | TX-AquaEco-12 | TX-AquaEco-14 | TX-AquaEco-17 | TX-AquaEco-20 | TX-AquaEco-22 | TX-AquaEco-27 | TX-AquaEco-27/3 | TX-AquaEco-32 | TX-AquaEco-32/3 | TX-AquaEco-32/3 |
| Power Supply | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | 220~240V/1ph/50Hz | 380~415V/3ph/50Hz | |||||||
| Advised Pool Volume(m³) | 18~35 | 25~40 | 30~50 | 35~60 | 40~65 | 45~75 | 55~90 | 55~90 | 65~105 | 65~105 | 75~120 |
| PV Max. Input Range(V) | 80~370 | 80~370 | 80~370 | 80~370 | 80~370 | 120~370 | 120~370 | 310~560 | 310~560 | 310~560 | 310~560 |
| Operating Air Temp.(℃) | -20~43 | ||||||||||
| Performance Condition: Air 26℃, Water 26℃, Humidity 80% | |||||||||||
| Heating Capacity(kW) in Turbo Mode | 9.5 | 12 | 14 | 16.5 | 20 | 22.5 | 26.5 | 26.5 | 32 | 32 | 40 |
| Heating Capacity(kW) in Silent Mode | 8 | 9 | 12 | 13.7 | 15.5 | 17.6 | 22.1 | 22.1 | 27.5 | 27.5 | 35 |
| Power Input(kW) | 0.11~1.25 | 0.13~1.54 | 0.16~1.84 | 0.19~2.23 | 0.22~2.7 | 0.25~3.04 | 0.31~3.58 | 0.31~3.58 | 0.37~4.44 | 0.37~4.44 | 0.47~5.56 |
| COP | 21.6~7.6 | 23.3~7.8 | 22.1~7.6 | 22.1~7.4 | 23.1~7.4 | 22.6~7.4 | 21.2~7.4 | 21.2~7.4 | 21.6~7.2 | 21.6~7.2 | 21.2~7.2 |
| COP at 50% Capacity | 14.5 | 14.9 | 15 | 14.9 | 14.7 | 15.1 | 15.5 | 15.5 | 14.9 | 14.9 | 14.9 |
| Performanc Condition: Air 15℃, Water 26℃， Humidity 70% | |||||||||||
| Heating Capacity(kW) in Turbo Mode | 6.5 | 8.6 | 9 | 11 | 13.5 | 15.5 | 18 | 18 | 22.5 | 22.5 | 28.5 |
| Heating Capacity(kW) in Smart Mode | 5.2 | 6.8 | 7.2 | 8.8 | 10.8 | 12.4 | 14.5 | 14.5 | 18 | 18 | 23.5 |
| Power Input(kW) | 0.2~1.2 | 0.24~1.51 | 0.27~1.7 | 0.31~2.12 | 0.4~2.65 | 0.48~2.92 | 0.54~3.46 | 0.54~3.46 | 0.69~4.33 | 0.69~4.33 | 0.88~5.7 |
| COP | 8.0~5.4 | 8.9~5.7 | 8.2~5.3 | 8.8~5.2 | 8.5~5.1 | 8.1~5.3 | 8.3~5.2 | 8.3~5.2 | 8.1~5.2 | 8.1~5.2 | 8.1~5.0 |
| COP at 50% Capacity | 7.3 | 7.5 | 7.4 | 7.5 | 7.8 | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 | 7.4 |
| Performance Condition: Air 7℃, Water 26℃, Humidity 90% | |||||||||||
| Heating Capacity(kW) in Turbo Mode | 5 | 6.8 | 7.2 | 9.2 | 11.5 | 12.5 | 15.5 | 15.5 | 18 | 18 | 22.5 |
| Power Input(kW) | 1.11 | 1.38 | 1.57 | 2 | 2.61 | 2.78 | 3.3 | 3.3 | 3.83 | 3.83 | 5 |
| COP | 6.9~4.5 | 7~4.9 | 7.1~4.6 | 7.2~4.6 | 7~4.4 | 7.3~4.5 | 7~4.7 | 7.2~4.5 | 7.3~4.7 | 7~4.5 | 7~4.5 |
| Performance Condition: Air 35℃, Water 28℃, Humidity 80% | |||||||||||
| Cooling Capacity(kW)(optional) | 4.5 | 5.5 | 6.5 | 8.5 | 10 | 11.5 | 13 | 13 | 15 | 15 | 18.9 |
| Sound Pressure at 1m (dB(A)) | 36.6~43.4 | 37.7~44.8 | 37.8~45.9 | 41~46.7 | 41.5~47.3 | 41.9~49.5 | 39.7~49.8 | 39.7~49.8 | 42.1~50.3 | 42.1~50.3 | 41.5~50.5 |
| Sound Pressure of 50% capacity at 1m (dB(A)) | 37.6 | 38.8 | 40.3 | 42.7 | 42.5 | 43.3 | 43.1 | 43.1 | 45.2 | 45.2 | 42.5 |
| Sound Pressure at 10m (dB(A)) | 16.6~23.4 | 17.7~24.8 | 17.8~25.9 | 21~26.7 | 21.5~27.3 | 21.9~29.5 | 19.7~29.8 | 22.1~30.3 | 22.1~30.3 | 22.1~30.3 | 21.5~30.5 |
| Compressor | Twin-Rootary DC Inverter | ||||||||||
| Heat Exchanger | Titanium Heat Exchanger | ||||||||||
| Casing | Metal Casing | ||||||||||
| Rated Input Power at Air 15℃(kW) | 0.14~1.25 | 0.15~1.38 | 0.19~1.7 | 0.2~2.08 | 0.25~2.45 | 0.27~2.74 | 0.32~3.31 | 0.32~3.31 | 0.46~4.1 | 0.46~4.1 | 0.6~5.7 |
| Rated Input Current at Air 15℃(A) | 0.62~5.43 | 0.65~6 | 0.83~7.39 | 0.87~9.04 | 1.09~10.65 | 1.17~11.9 | 1.39~14.4 | 0.46~4.78 | 2.01~17.8 | 0.66~5.91 | 0.87~8.22 |
| Advised Water Flux(m³/h) | 2~4 | 2~4 | 3~4 | 4~6 | 4~6 | 6.5~8.5 | 8~10 | 8~10 | 10~12 | 10~12 | 12~18 |
| Net Dimension(L*W*H)(mm) | 910*432*670 | 1045*432*670 | 1195*432*770 | 1072*536*966 | 1264*536*957 | 1364*536*957 | |||||
| Note: The data above is for reference only. Please refer to the nameplate for the unit if for more specific data. | |||||||||||
