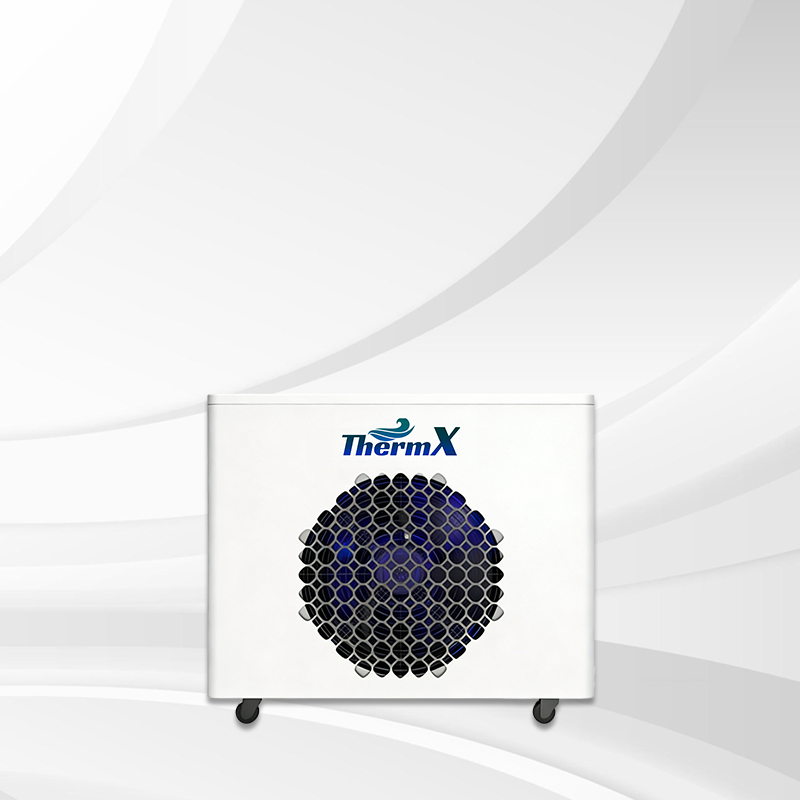

AquaChill Series (R290 Ice Bath Chiller)

Product Features

  • • Eco-friendly R290 Refrigerant
  • • ON-OFF
  • • Silent Universal Wheels
  • • One-touch key lock
  • • Auto Dimming
  • • Manual Defrost / Automatic Defrost
  • • Water Pump Drain Function
  • • °F / °C Switchable
  • • Visual Easy-Detach Filter
  • • Wi-Fi function
caitlin@thermx.cn
Feature

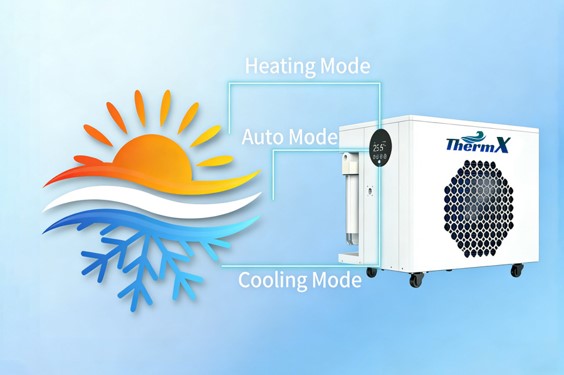

Multiple Operating Modes

With cooling, heating, and automatic modes available, the system adapts effortlessly to a variety of operating requirements.

Feature

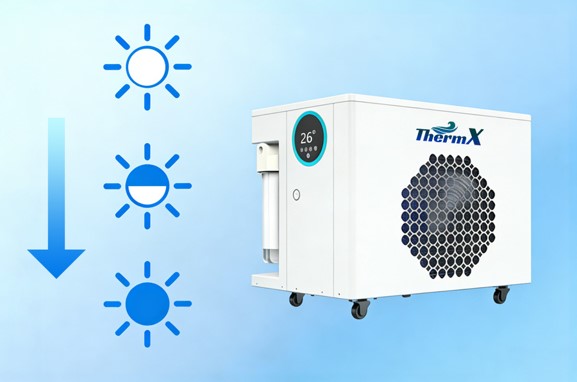

Automatic Dimming

Screen brightness automatically dims after 60 seconds of inactivity, effectively extending the display's service life.

Feature

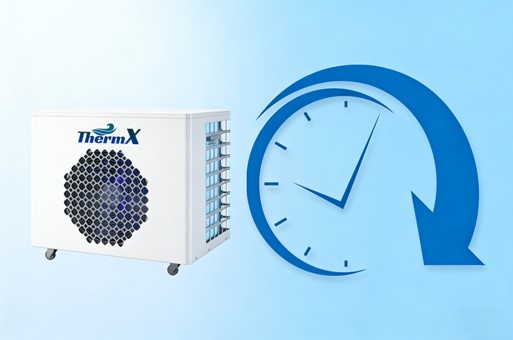

Time Setting & Multi-Period Timer

Easily configure time settings and multiple programmable periods for flexible, customized operation.

Feature

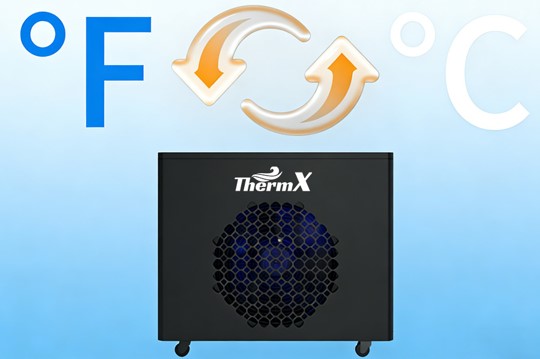

Temperature Unit Switching

Easily switch between Fahrenheit and Celsius to accommodate user preferences across different regions.

Feature

Defrost Function

Manual and automatic defrosting options ensure reliable operation even in cold conditions.

Feature

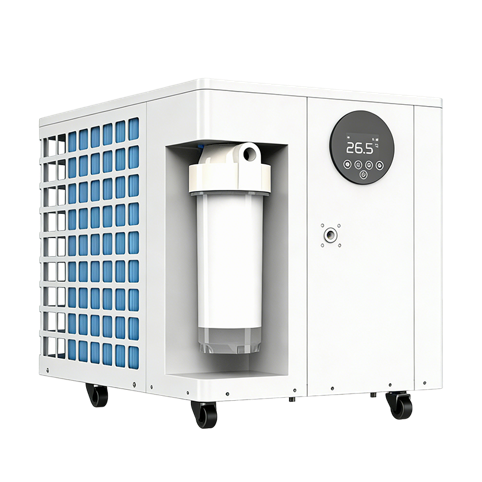

Visual Easy-Detach Filter

The transparent design allows for quick visual inspection of dirt and clogging, while the easy-detach mechanism enables simple removal and replacement.

ModelTX-AquaChill-5
Heating Capacity at Air 27℃, Water 26℃ in and 28℃ out,   Humidity 80%
Heating   Capacity(kW)5.25
Power   Input(kW)1.24
COP4.25
Heating Capacity at Air 27℃, Water 38℃, Humidity 80%
Heating   Capacity(kW)4.35
Power   Input(kW)1.27
COP3.42
Heating Capacity at Air 15℃, Water 26℃, Humidity 70%
Heating   Capacity(kW)3.35
Power   Input(kW)1.12
COP3
Cooling Capacity at Air 35℃, Water 29℃
Cooling   Capacity(kW)3.25
Power   Input(kW)1.19
EER2.72
Cooling Capacity at Air 27℃, Water 5℃
Cooling   Capacity(kW)1.68
Power   Input(kW)0.94
EER1.78
Cooling Capacity at Air 15℃, Water 5℃
Cooling   Capacity(kW)2.1
Power   Input(kW)0.82
EER2.55
General Data
Power Supply220~240V/1ph/50Hz
Max Power   Input(kW)2
Max Current(A)8.8
Suggested   Water Flow Volume(m³/h)1.30~2.00
Advised Poll   Size(m³)5~16
RefrigerantR290
Heat ExchangerTitanium
Air Flow   DirectionHorizontal
Casing   MaterialMetal
Ozone   SterilizerBuilt-in
FilterBuilt-in
Water PumpBuilt-in
Wireless   ControlWi-Fi Support
Setting Temp.   Range(℃)3~38
Operating   Ambient Temp.(℃)-7~43
Noise   Level(dB(A))50
Water   ConnectionG1
Net Weight(kg)39
Gross   Weight(kg)42
Net   Dimensions(mm)578*422*448
Packed   Dimensions(mm)635*452*532
Note: The data above is for reference only. Please refer to   the nameplate on the unit if for more specific data.
