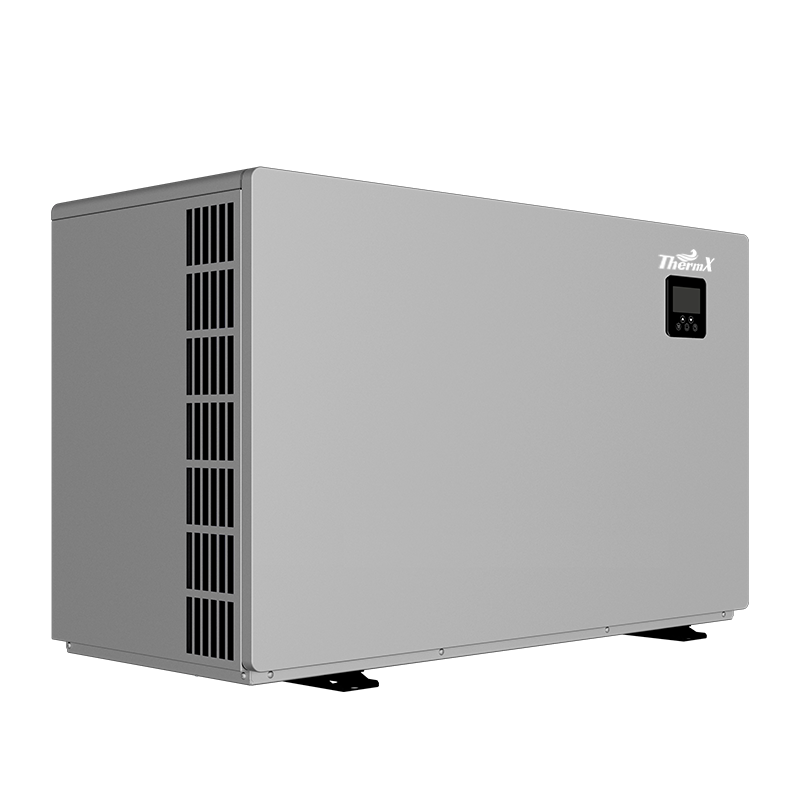

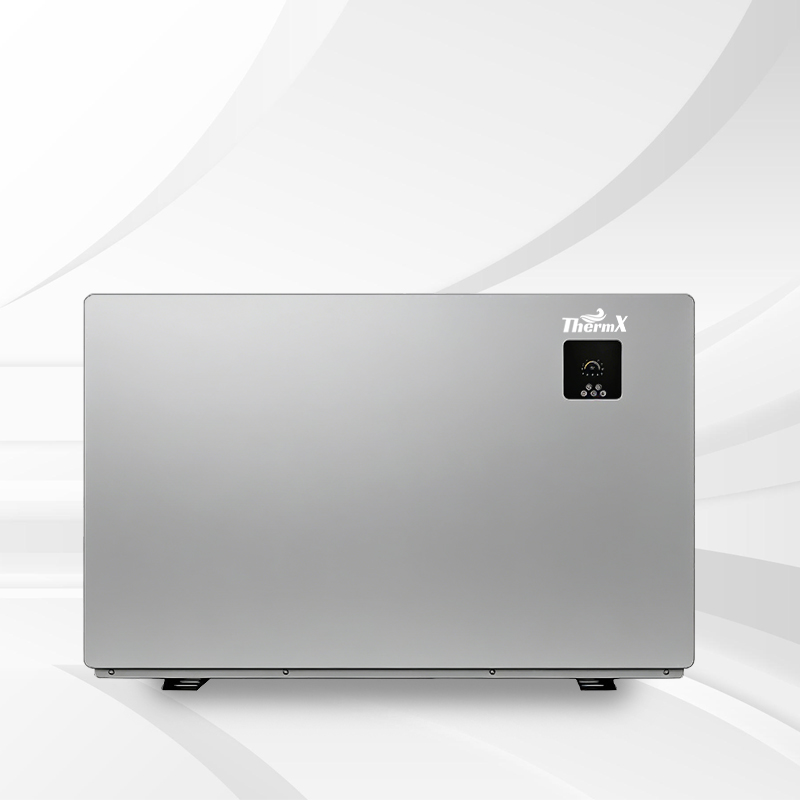

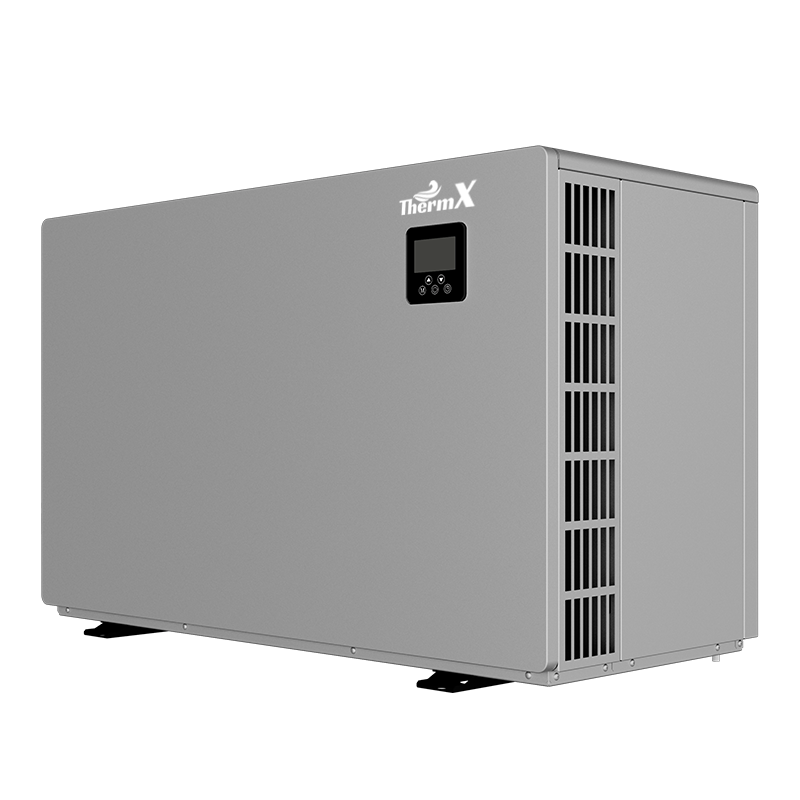

AquaFlow Plus Series (R32, Rear Intake)

Product Features

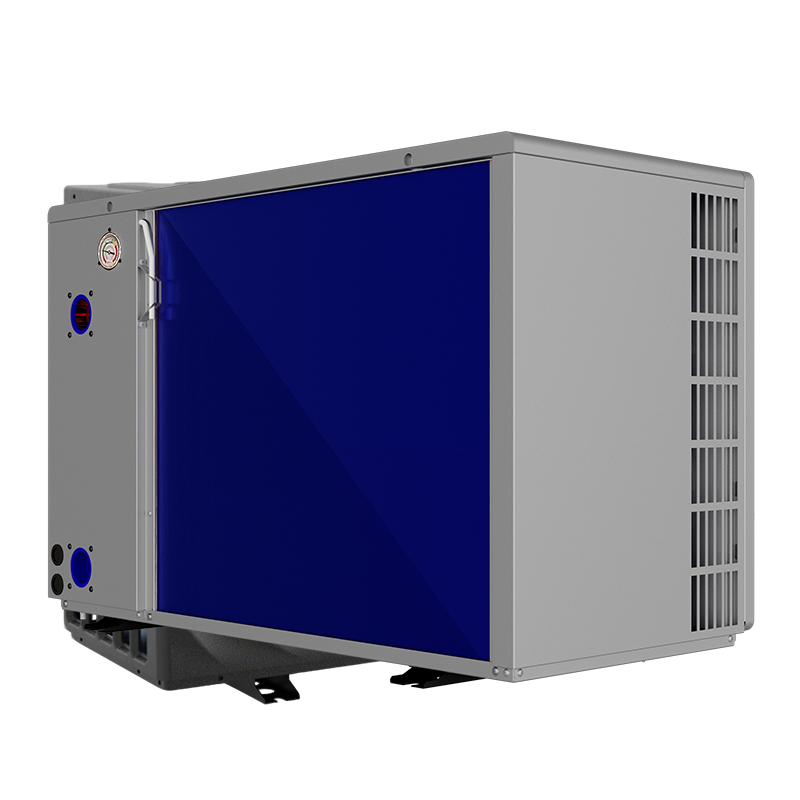

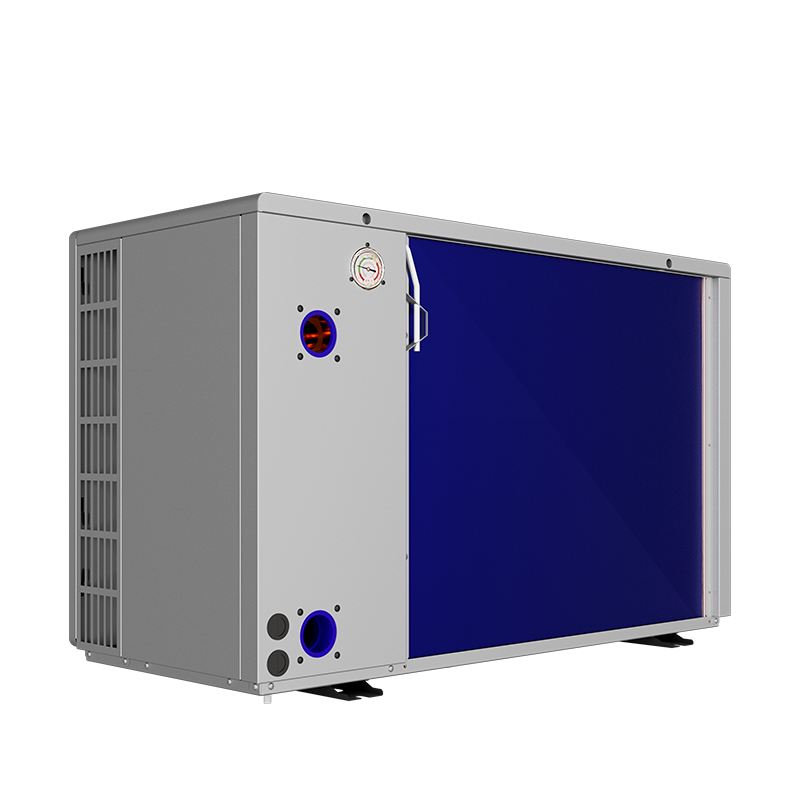

  • • Back inlet air flow,centrifugal fan design.
  • • Ultra-quiet design
  • • Smart Wi-Fi Control&Touch Screen
  • • Eco-friendly R32 refrigerant
  • • Stable Operation under Low Temperature at -15°C
  • • COP up to 16
caitlin@thermx.cn
Feature

Ultra COP

Achieving an exceptional coefficient of performance (COP) of up to 16, this system sets a new benchmark for energy efficiency. Engineered to maximize heat output while minimizing energy consumption, it delivers powerful performance with reduced operating costs. Ideal for pool heating and space warming, it offers a sustainable, eco-friendly solution that ensures long-term savings and a superior user experience.

Feature

Smart WIFI Control

This pool heat pump features intelligent connectivity, enabling seamless remote control and real-time monitoring via Wi-Fi and a dedicated mobile app. Easily adjust temperature settings, schedule operations, and check system status from your smartphone or tablet. Designed for ultimate convenience and flexibility, it ensures your pool is always at the perfect temperature—anytime, anywhere.

Feature

Ultra Quiet

Operating at an exceptionally low noise level of just 36 dB(A) at a distance of 1 meter, this heat pump ensures a მშვიდ and undisturbed environment. Built with advanced noise-reduction technology, it delivers powerful, energy-efficient performance while maintaining near-silent operation. Ideal for a serene poolside setting, it offers the perfect balance of comfort, efficiency, and quiet relaxation.

Feature

Silent Mode

Advanced airflow design and inverter technology reduce noise levels to as low as 36 dB, ensuring a მშვიდ and relaxing swimming experience.

ModelTX-AquaPlus-7TX-AquaPlus-9TX-AquaPlus-12TX-AquaPlus-15TX-AquaPlus-18TX-AquaPlus-21TX-AquaPlus-25TX-AquaPlus-28TX-AquaPlus-21/3TX-AquaPlus-25/3TX-AquaPlus-28/3
Heating Condition:   (DB/WB) 27℃/24.3℃, Water Inlet/Outlet Temperature: 26/28℃
Heating   Capacity(kW)1.60~7.502.30~9.503.00~11.503.80~15.004.80~18.005.60~20.506.80~24.207.20~28.605.60~21.506.80~25.007.20~28.60
Power   Input(kW)0.11~1.120.15~1.400.19~1.910.24~2.500.30~3.090.33~3.340.42~3.410.49~4.390.33~3.340.43~4.120.49~4.39
COP6.85~16.057.12~16.257.22~16.057.25~16.057.25~16.056.41~16.157.10~16.166.58~16.106.41~16.156.55~16.056.58~16.10
Average COP at   50% Capacity10.710.810.810.810.0810.711.610.710.710.810.7
Heating Capacity   (DB/WB)15℃/12℃, Water Inlet Temperature: 26℃
Heating   Capacity(kW)1.40~5.501.90~7.002.30~8.503.50~11.303.80~14.204.50~15.505.50~19.206.10~21.504.50~15.505.50~19.206.10~21.50
Power   Input(kW)0.18~1.240.25~1.550.30~1.960.39~2.760.50~3.370.65~3.790.70~3.960.95~4.990.65~3.790.76~4.650.95~4.99
COP4.95~7.624.75~7.554.85~7.524.75~7.454.75~7.354.96~7.334.85~7.844.95~7.234.96~7.334.69~7.284.95~7.23
Average COP at   50% Capacity6.56.66.66.46.66.56.86.56.56.86.5
Max. Power   Input(kW)1.82.52.93.84.55.56.26.95.56.26.9
Max.   Current(A)9.112.614.619.222.727.831.334.89.811.112.3
Power Supply220~240V/1ph/50~60Hz380~415V/3ph/50~50Hz
RefrigerantR32
Compressor   TypeRotary
Gas ControlEEV
4-Way ValveYes
Fan Quantity1
Heat   ExchangerTitanium in PVC
Casing   Material OptionsMetal or ABS Plastics
Wifi ControlOptional
ControllerLCD
High Pressure   ProtectionYes
Electric   Shock ProofⅠ
Water Proof   LevelIPX4
Water   Flow(m³/h)2.53.54.55.56.59.510.512.59.510.512.5
Water   Pressure Drop(kPa)15182535
Heating Temp.   Range(℃)15~40
Cooling Temp.   Range(℃)8~28
Operating   Ambient Temp.(℃)-15~46
Noise Level at   1m(dB(A))36~4837~4940~5040~5242~5444~5644~5645~5844~5644~5645~58
Noise Level at   10m(dB(A))18~2819~3021~3122~3224~3324~3424~3525~3624~3424~3525~36
Water Pipe   ConnectionDN50
Net Weight(kg)5564657075808388808388
Gross   Weight(kg)667576818692951009295100
Net   Dimension(mm)1000*452.5*6371054*460.5*667.31354*552.5*707.5
Packed   Dimension(mm)1096*480*7501150*490*7951450*580*820
Note: The data   above is for reference only. Please refer to the nameplate for the unit if   for more specific data.
