AquaPro Series (R410A, Commercial )
Product Features
- • R410A refrigerant ,ON-OFF type
- • Stable Operation under Low Temperature at -15°C
- • Noise Level as low as 56dB(A)

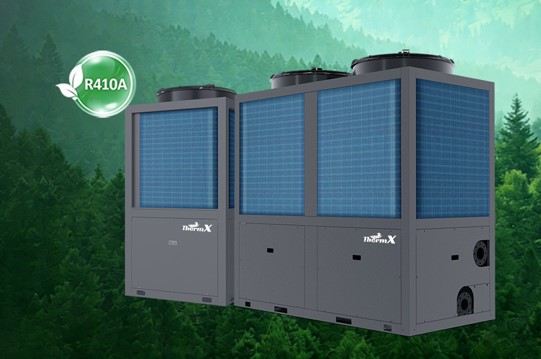

Eco Refrigerant
R410A is a chlorine-free refrigerant that protects the ozone layer, offers excellent heating performance, operates at moderate pressure, and complies with international refrigeration safety standards..
Safe Operation
Multiple safety features include high/low pressure, overcurrent, phase-loss, anti-freeze, and delayed start protections, ensuring safe and stable operation under all conditions.

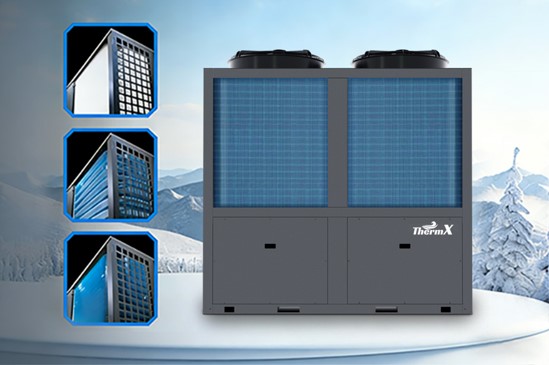

Intelligent Defrosting – Reliable Operation at -15°C
An advanced intelligent defrosting system prevents frost buildup, ensuring stable and efficient heating even in harsh cold climates. Delivering reliable, uninterrupted performance, it guarantees year-round comfort for commercial applications—ideal for outdoor or semi-indoor pools operating in all seasons.

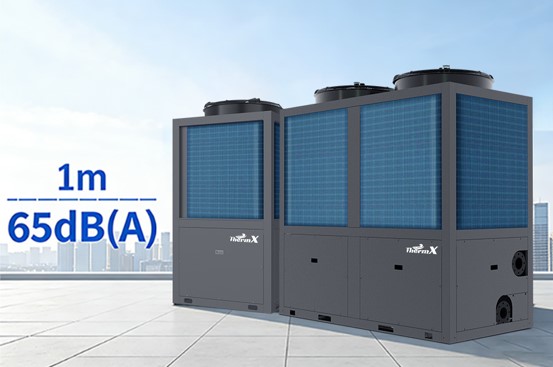

Quiet Operation
Engineered with soundproof insulation and optimized fan blades, this commercial heat pump operates at just 65 dB(A) at 1 meter. It delivers efficient heating with minimal noise, providing a comfortable and serene environment for commercial spaces.
| Model | TX-AquaPro-25 | TX-AquaPro-50 | TX-AquaPro-100 | TX-AquaPro-200 |
| Power Supply | 380~415V/3ph/50Hz | |||
| Heating Capacity at Air 26℃/24℃, Water 26℃ in, 28℃ out | ||||
| Heating Capacity(kW) | 25 | 50 | 100 | 200 |
| Power Input(kW) | 4.13 | 8.26 | 17.09 | 34.19 |
| COP | 6.05 | 6.05 | 5.85 | 5.85 |
| Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out | ||||
| Heating Capacity(kW) | 20 | 38 | 75 | 150 |
| Power Input(kW) | 4.04 | 7.68 | 15.46 | 30.93 |
| COP | 4.95 | 4.95 | 4.85 | 4.85 |
| Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out | ||||
| Cooling Capacity(kW) | 17 | 32.5 | 65 | 130 |
| Power Input(kW) | 5.23 | 10 | 20.25 | 42.62 |
| EER | 3.25 | 3.25 | 3.21 | 3.05 |
| Max Power Input(kW) | 6.9 | 13.2 | 26.5 | 50 |
| Max Current(A) | 12.3 | 23.5 | 47.5 | 91.5 |
| Refrigerant | R410A | |||
| Heat Exchanger | Titanium | |||
| Expansion Valve | Electronic | |||
| Air Flow Direction | Vertical | |||
| Water Flow Volume(m³/h) | 11 | 21 | 43 | 86 |
| Working Temp. Range(℃) | -15~43 | |||
| Noise(dB(A)) | ≤56 | ≤59 | ≤65 | ≤70 |
| Water Connection(mm) | 50 | 65 | 80 | 110 |
| Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data. | ||||
