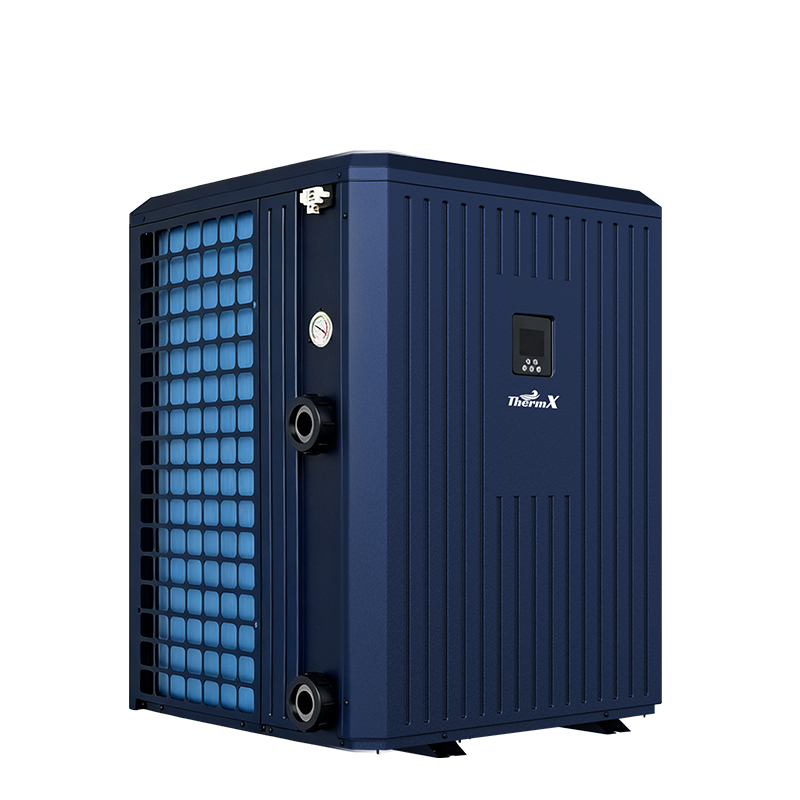

AquaTop Series (R32, Top Discharge)

Product Features

  • • Mitsubishi Compressor & Eco-Friendly R32 Refrigerant
  • • Full DC Inverter – Precise, energy-efficient heating.
  • • High COP up to 16 – Exceptional performance and efficiency.
  • • Cold-Resistant – Stable operation down to -15°C.
  • • Ultra-Quiet – As low as 39 dB(A).

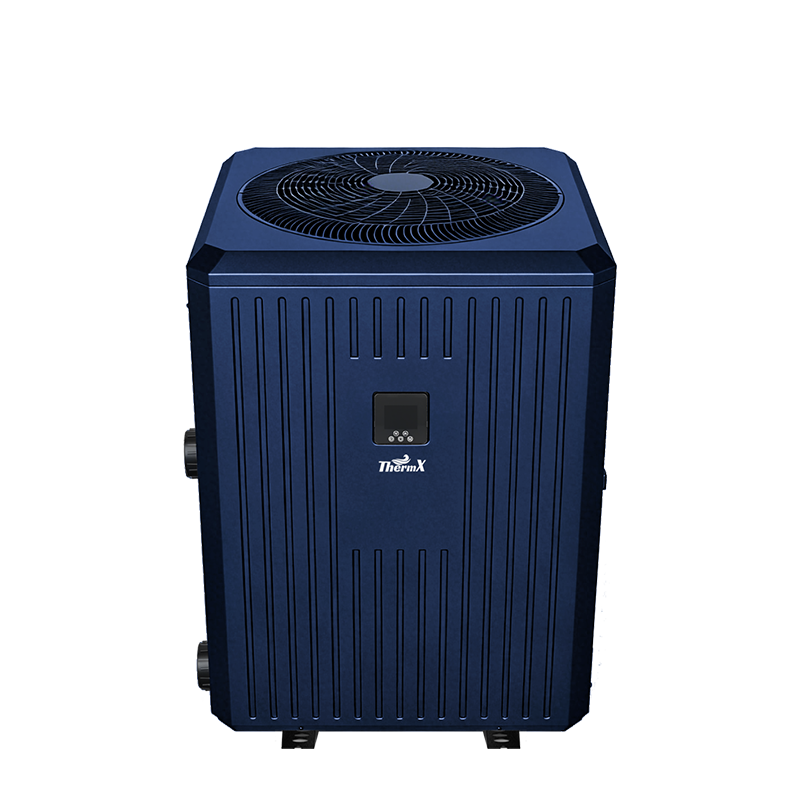

  • • Top Discharge Design – Optimized airflow and efficiency.
  • • Smart Control – Wi-Fi, app, and IoT management.
caitlin@thermx.cn
Feature

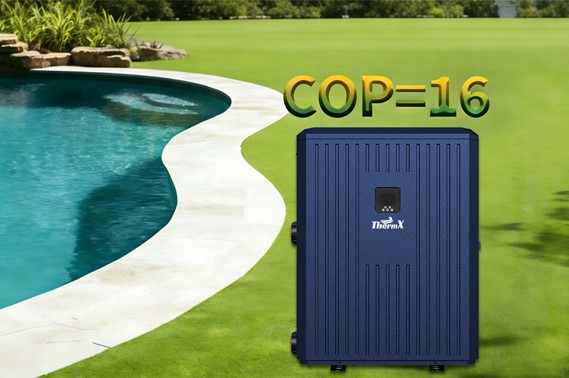

Ultra COP

Achieving an exceptional coefficient of performance (COP) of up to 16, this system sets a new benchmark for energy efficiency. Engineered to maximize heat output while minimizing energy consumption, it delivers powerful performance with reduced operating costs. Ideal for pool heating and space warming, it offers a sustainable, eco-friendly solution that ensures long-term savings and a superior user experience.

Feature

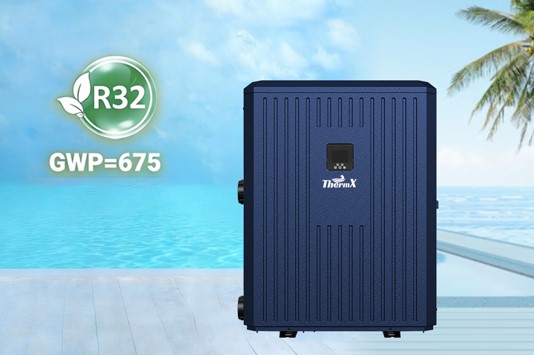

Eco-Friendly

Powered by environmentally friendly R32 refrigerant with a low Global Warming Potential (GWP) of just 675, this pool heat pump delivers enhanced heating efficiency while minimizing environmental impact. Designed to reduce ozone depletion and energy consumption, it offers a sustainable, cost-effective solution—so you can enjoy a warm, comfortable pool while caring for the planet.

Feature

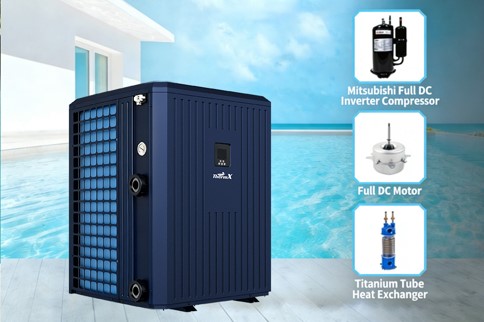

Advanced Technology

Equipped with Mitsubishi full DC inveter compressors, high-efficiency DC motors, and premium titanium tube heat exchangers, this pool heat pump delivers exceptional performance, stability, and long-lasting durability. Engineered for precision and reliability, it maintains your pool at the ideal temperature while maximizing energy efficiency—offering a truly superior heating experience.

Feature

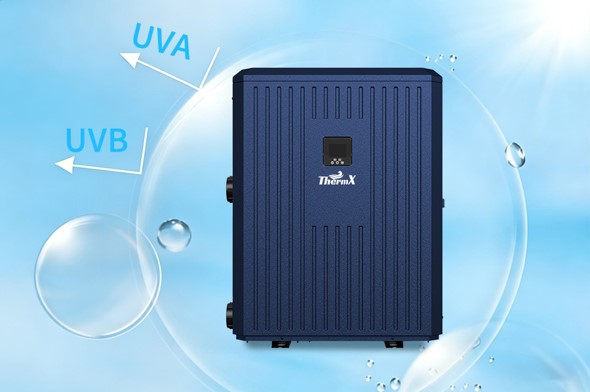

Durable Protection

Constructed with high-quality ABS+ASA plastic, this pool heat pump offers exceptional durability and outstanding resistance to UV exposure. Its rugged design ensures long-lasting performance and reliable protection against environmental elements, making it the perfect choice for maintaining optimal pool temperatures all year round.

ModelTX-AquaTop-7TX-AquaTop-9TX-AquaTop-12TX-AquaTop-15TX-AquaTop-18TX-AquaTop-25TX-AquaTop-35TX-AquaTop-25/3TX-AquaTop-35/3TX-AquaTop-41/3
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃   out
Heating   Capacity(kW)1.70~7.002.30~8.803.90~11.005.80~14.506.20~17.907.50~24.58.80~35.007.50~24.508.80~35.0010.00~41.00
Power   Input(kW)0.11~1.020.14~1.290.24~1.610.36~2.120.39~2.490.47~3.570.51~5.660.47~3.570.51~5.660.63~5.98
COP 6.80~15.986.82~15.976.82~15.966.82~15.956.82~15.966.89~15.896.86~15.966.85~15.986.86~15.966.86~15.98
Average COP at   50% Capacity11.611.811.611.611.511.811.611.511.811.6
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃   out
Heating   Capacity(kW)1.40~5.301.90~7.002.30~9.403.60~12.504.20~15.005.50~21.006.90~28.605.50~21.006.90~28.607.90~35.00
Power   Input(kW)0.19~1.130.25~1.460.29~1.960.48~2.600.50~3.060.72~4.290.86~5.850.72~4.290.86~5.851.01~7.00
COP4.70~7.504.80~7.604.80~7.804.80~7.704.9~7.84.9~7.64.9~8.04.90~7.804.90~8.005.00~7.80
Average COP at   50% Capacity6.66.86.76.76.86.76.86.76.86.7
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling   Capacity(kW)1.00~4.201.30~5.301.90~6.802.10~9.402.70~11.603.80~14.904.90~19.303.80~14.904.90~19.305.90~23.40
Power   Input(kW)0.51~1.110.19~1.400.25~1.890.54~2.470.66~3.050.77~3.920.93~5.080.77~3.920.99~5.081.26~5.88
EER3.50~6.003.50~6.103.40~6.503.60~6.303.40~6.203.80~6.703.40~6.403.80~6.703.50~6.403.10~6.30
General Data
Power Supply220~240V/1ph/50~60Hz380~415V/3ph/50~60Hz
Max. Power   Input(kW)1.451.752.753.153.755.176.434.767.29.58
Max.   Current(A)7.18.311.514.517.523.5307.912.713.5
Water Flow   Volume(m³/h)2.53.54.55.56.591291218
RefrigerantR32
Heat ExchangerTitanium
Air Flow   DirectionVertical
Casing   MaterialABS
Working Temp.   Range(℃)-15~43
Noise Level at   1m(dB(A))39~5140~5241~5342~5443~5647~5846~5947~5849~5949~59
Water Pipe   ConnectionDN50
Net Weight(kg)50556571739511396114115
Gross   Weight(kg)6167798587112130113131132
Net   Dimension(mm)530*530*655650*650*790730*730*980
Packed   Dimension(mm)600*560*820720*680*950800*760*1110
Note: The data above is for reference only. Please refer to   the nameplate on the unit if for more specific data.
